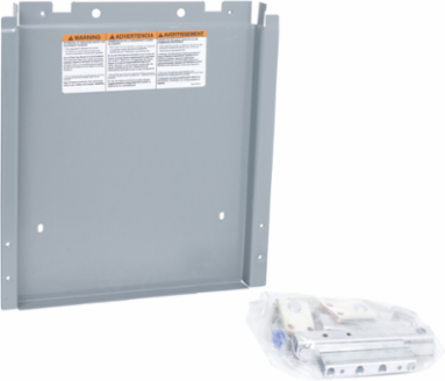

Square D NFALV1 Panelboard accessory, NF, lug kit, compression, 125A, 4 AWG to 300kcmil, Al

MPN: NFALV1
UPC: 785901538790
PPN: SCH-NFALV1

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$368.85/ EA

Qty:

Loading add to cart quantity...

Description

Panelboard accessory, NF, lug kit, compression, 125A, 4 AWG to 300kcmil, Al

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free: Yes

Eu Rohs Directive: Compliant

Reach Free Of Svhc: Yes

Rohs Exemption InformationYes

Toxic Heavy Metal FreeYes

Reach RegulationFree of Substances of Very High Concern above the threshold

Specifications

Quantity Per Set: set of 1

Provided Equipment: bracket for support 2 || rail extension 2 || rail splice 2 || lug 4 || lug pad 3 || nut 3 || screw set 3 || cover 1

Product Or Component Typecompression lug

Contractual warranty

Warranty: 18 months

Complementary

[In] Rated Current: 125-125 A

Awg Gauge: AWG 4...300 kcmil 1 aluminum/copper

Tightening Torque9.0-19.8 N.m 21.25-152 mm² AWG 4...300 kcmil)

Materialaluminium
