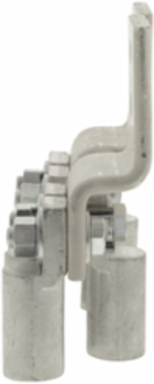

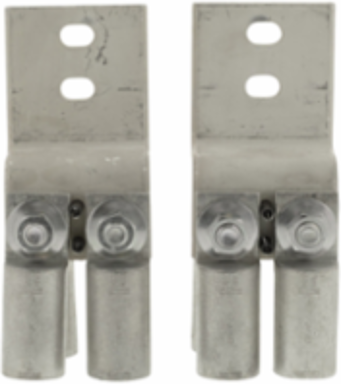

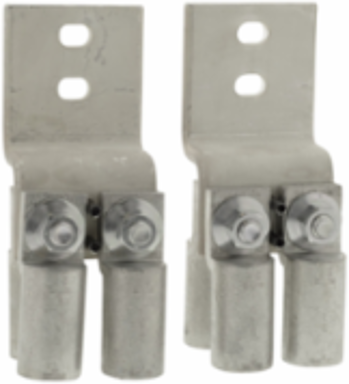

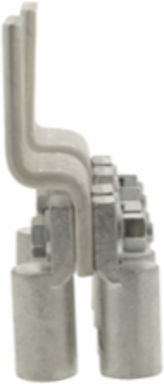

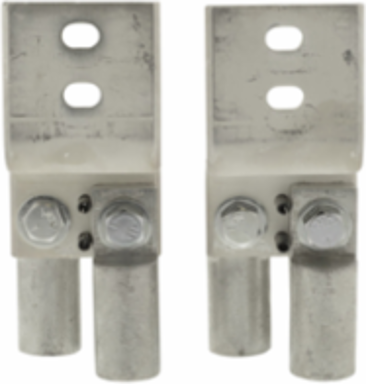

Square D H8LKE2 Lug kit, compression, 800A, 3 conductors per phase, 500 to 750kcmil Al, 500kcmil Cu

Lug kit, compression, 800A, 3 conductors per phase, 500 to 750kcmil Al, 500kcmil Cu - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/344d7ee6699cb31fc4c417812290f8ea080a09c6-medium.png

Lug kit, compression, 800A, 3 conductors per phase, 500 to 750kcmil Al, 500kcmil Cu

Square D H8LKE2 Lug kit, compression, 800A, 3 conductors per phase, 500 to 750kcmil Al, 500kcmil Cu

MPN: H8LKE2
UPC: 785901476290
PPN: SCH-H8LKE2

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1417.40/ EA

Qty:

Loading add to cart quantity...

Description

The Square D™ by Schneider Electric brand Heavy Duty Safety Switch is designed to be tough, reliable and provide exceptional performance in the most grueling conditions. F Series safety switches provide significantly higher levels of mechanical endurance than NEMA KS-1 or UL98 standards require. All heavy duty safety switches feature a quick-make, quick-break operating mechanism, a dual cover interlock and a color-coded indicator handle. This Square D heavy duty safety switch grounding bar comes in 30A & 60A. This Solid Insulated Groundable Neutral Assembly has a currrent rating of 400A/600A and has a terminal service ground. This neutral is for series E 4 and 5 safety switchs. This accessory has a UL listed & CSA certifications. This compression lug are for heavy duty safety switch, 800A rated current. These lugs are rated for 500/750 kcmil aluminium &500 kcmil copper AWG gauge wire.

Specifications

Complementary

Awg Gauge: 500...750 kcmil 3 aluminum || 500 kcmil 3 copper

Materialaluminium

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1405016EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Specifications

Product Or Component Type: compression lug

Product Destinationsafety switch heavy duty 800-800 A
