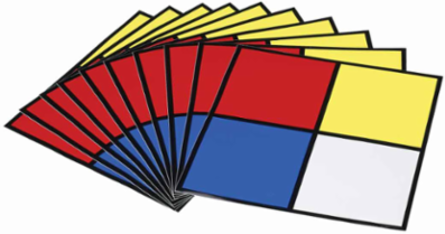

Brady 58503 NFPA Diamond Labels, 10" H x 10" W
- MPN: 58503
- UPC: 754473585037
- PPN: BRD-58503
- UNSPSC: 55121725
CAD
$284.99
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This durable, low-shrink vinyl with ultra-aggressive adhesive withstands the elements indoors and out.
Features
- Highly pliable material with high-tack permanent adhesive for rough, highly textured, dirty and harsh environment surfaces--including outdoors
- Conforms and adheres to "difficult" surfaces like painted cinder blocks, painted wood, textured plastic, paper-jacketed pipes and blow-molded cases
- Resistant to exposure to chemicals, greases and oils, salt spray, cleaners and detergents and general industrial grime
- 8-10 year average outdoor durability in temperatures from -40°F to 180°F (-40°C to 82°C);can be applied as low as 0°F (-18°C)
- Recommended Quik-Align size for numbers and letters is 4"
Documentation & Downloads
Specifications
Key Specifications
| Brand Name | Brady® |
|---|---|
| Color | Black/Blue/Red/Yellow on White |
| Enables Industry Compliance | Globally Harmonized System (GHS); NFPA 704; OSHA 1910.1200 |
| Image or Text | Image Only |
| Primary Noun, Basic Function | Sign |
| PSPA Photoluminescence Class | Not Illuminated |
| Shape | Square |
| Brady Material Number | B-946 |
| Indoor or Outdoor Use | Outdoor Use |
| Material | Vinyl |
| Dimensions | 10 in H x 10 in W |
| Dimensions 2 | 10 in H x 10 in W |
| Height (mm/cm/m) | 25.4 cm |
| Maximum Service Temperature °F | 180 °F |
| Minimum Application Temperature °F | 0 °F |
| Minimum Service Temperature °F | -40 °F |
| Sign Size-General | 10 in x 10 in |
| Thickness (mm/cm/m) | 0.102 mm |
| Width (mm/cm/m) | 25.4 cm |
| Calculated Sign Shape | Square |
|---|---|
| Compatible Surface Types | General |
| Finish | Gloss |
| Number of Printed Sides | 1 |
| Printer and Label Applications | General Identification; Pipe Marker |
| Reflective Type | Non-Reflective |
| Adhesive Type | Permanent Acrylic |
| Illumination | Not Illuminated |
| Label Properties | Aggressive Adhesive Labels; Permanent Adhesive Labels; Standard High Quality Labels |
| SAP B-Number | B-946 |
| Dimensions (Metric) | 25.4 cm H |
| Height (in/ft/yd) | 10 in |
| Maximum Service Temperature °C | 82 °C |
| Minimum Application Temperature °C | -18 °C |
| Minimum Service Temperature °C | -40 °C |
| Sign Size | 10 in H x 10 in W |
| Thickness (in/ft/yd) | 0.004 in |
| Width (in/ft/yd) | 10 in |
Regulatory Information
| Contains CA PROP 65 Substance | No - Does not contain |
|---|---|
| Contains Heavy Metal(s) | No - Does not contain |
| EU RoHS Compliance | Not Applicable |
| SDS Safety Data Sheet required | No = MSDS/SDS is not required |
| Contains CA PROP 65 Substance | No |
|---|---|
| DOT Regulated Product | No = not regulated by DOT |
| EU RoHS Compliant | No |
