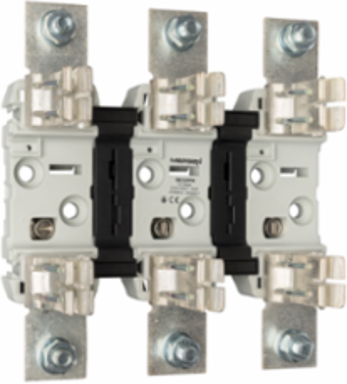

Mersen F214664 NH Plastic Fuse Base 3-Pole, 630 A, 690 V AC, Screw Connections
Mersen F214664 NH Plastic Fuse Base 3-Pole, 630 A, 690 V AC, Screw Connections
- MPN: F214664
- UPC: 8430399003030
- PPN: FER-F214664
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$926.44/ EA
Description

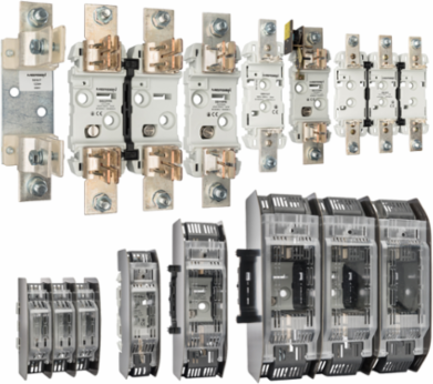

NH fuse-bases are available for delivery in single-pole and three-pole designs and can be closely mounted in parallel rows. Each three-pole base is upplied with two phase-partition walls. NH fuse-links plugon covers which clip onto the contact springs can also be supplied for these bases. Plastic fuse-bases sizes 00 to 3 have a single-part plastic base while size 4 has a metal baseplate with 2 ceramic bases. The stable silver-plated contact springs are made of electrolytic copper and formed from one piece. Separate springing is provided by highly resilient captive steel springs, making the contact invulnerable to high thermal stress. Size 4 NH fuse-bases are designed for size 4 fuse-links with 8 mm contact blades. A microswitch (250VAC/10A, terminal size 6.3x0.8mm) can be used with NH fuse-links with striker, it operates when fuse melts or where there is no fuse-link. Indirect touch protection fuse bases: no microswitch possible.
Specifications
Specifications
- Rated voltage AC IEC
- 1250 V
- Ampere Rating
- 630 A
- AC or DC
- AC/DC
- Fuse Size
- NH3
- Number of Poles
- 3-Pole
- Installation Mounting
- DIN Rail
- Width
- 8.78 in
- Height
- 9.49 in
Rated voltage DC IEC1000 V
ROHS CompliantYes
Short Circuit Current Rating (SCCR)From size 00 to size 3 : 117kA
Design DetailsPP Type
Torque Rating283.224 lb-in
Power Acceptance60 W
Length4.06 in
Weight5.203 lb
