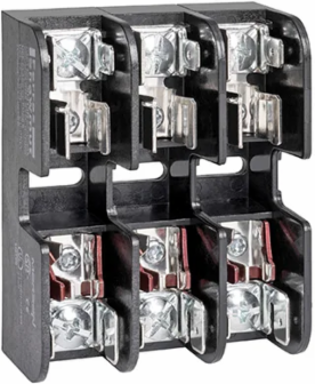

Mersen 30313R Fuse Bases 600V 30A Class CC 3-Pole with Screw Connections, GFPC Insulation
- MPN: 30313R
- UPC: 782001758387
- PPN: FER-30313R
CAD
$14.38
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Mersen midget fuse blocks accommodate all 30 ampere 1-1/2” x 13/32” midget fuses. Class CC fuse blocks accommodate all 30 ampere Class CC fuses. A choice of box, screw, or pressure-plate connectors fit a wide range of stranded or solid copper wire. Insulators are glassfilled polycarbonate (GFPC) with verified dielectric strength in excess of 2500V. Fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper alloy.
Features
- Engineered specifically for 30A Class CC fuses like the ATDR, ATMR, and ATQR series, this open-style block features a built-in rejection clip that physically prevents the accidental installation of lower-rated midget fuses. This fail-safe mechanism eliminates severe liability risks and catastrophic panel damage, ensuring your commercial power distribution system maintains its maximum 200kA Short Circuit Current Rating (SCCR) for strict UL 4248-4 compliance.
- Constructed from heavy-duty glass-filled polycarbonate (GFPC), this 3-pole fuse block delivers superior thermal stability with a continuous operating rating of up to 125°C. It easily resists heat warping inside demanding industrial motor control centers, providing a verified dielectric strength of over 2500V and an uncompromising 94V-0 flammability rating for ultimate fire safety.
- Featuring high-conductivity, tin-plated copper alloy clips, this 600V AC/DC block comes standard with screw terminals and double quick-connects optimized for #10-14 AWG solid or stranded copper wiring. This highly versatile setup accelerates large-scale OEM panel fabrication while guaranteeing a secure, low-resistance connection that prevents dangerous localized heating and expensive equipment downtime.
- Built with Mersen's unique interlocking profile, this 3-pole configuration allows facility electricians and panel builders to instantly snap on additional adder blocks to create custom, multi-pole segmented layouts on the fly. Whether directly screw-mounted or adapted for standard DIN rails, this space-saving footprint maximizes valuable real estate inside complex automation enclosures while making routine electrical retrofits incredibly straightforward.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 V AC/DC
- Short Circuit Current Rating (SCCR)
- 200 kA
- Number of Poles
- 3
- Fuse Installation Method
- Clip-in
- Torque Rating
- 20 lb-in
- Width
- 1.6 in
- Weight
- 0.35 lb
- Material
- Tin-Plated Copper Alloy
- ROHS Compliance
- Yes
Amperage30 A Maximum
Frequency50/60 Hz
Fuse TypeClass CC
Installation MountingScrew Mount or DIN Rail
Length3.04 in
Height1.31 in
Body/Insulating MaterialGlass Filled Polycarbonate
Dielectric Strength2500 V+
