nVent Hoffman NHZ360816G360 SpectraCool Hazardous Location AC, 8000 BTU, 115V, Lt Gray, Steel
- MPN: NHZ360816G360
- UPC: 783510292089
- PPN: HOF-NHZ360816G360
- UNSPSC: 40101701
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
SpectraCool Hazardous Location Air Conditioners are designed for Class 1 Div 2 Groups A, B, C, D T4. This SpectraCool Narrow Hazardous Location AC with RAC, NHZ360816G360 item is rated 8000BTU 115V with material of Steel color Lt Gray.
Features
- Not re-built from light industrial air conditioners
- Painted galvanized sheet metal cover for rugged factory and outdoor environments
- Corrosion resistant coating on ambient side components for Type 4X models
- Corrosion resistant coating on ambient and enclosure side components for Type 4X Offshore models
- Dust resistant coils for filterless operation in most environments
- Cleanable, reusable aluminum mesh filter protects coils for extremely dusty and dirty atmospheres
- Digital temperature control
- Narrow design to accommodate 12-in (300-mm) deep cabinets
- R134a, R513A or R407C earth-friendly Refrigerant
- Models for 115, 230 and 400/460 3-phase VAC power input
- UL Listed to save customers time and money with agency approvals
- Easy-Mount flanges for simple installation
- Standard Type 4/4X models include
- - Active condensate management with heater strip
- - Compressor Heater
- - Head Pressure Control
- - Power-off relay for door switch and other system requirements
- - Malfunction switch

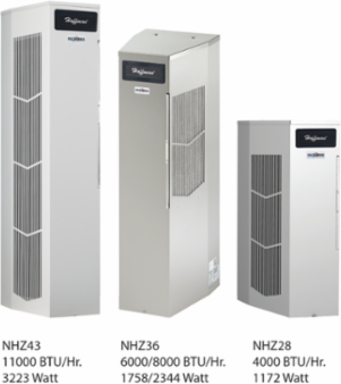

- Nominal cooling capacities:
- - NHZ28 4000 BTU/hr. (1172 W)
- - NHZ36 6000 & 8000 BTU/hr. (1758 and 2344 W)
- - NHZ43 11000 BTU/hr. (3223 W)
- Outdoor model operating temperature range from -40 F/ -40 C to 131 F/ 55 C (125 F/52 C on NHZ28 Series and NHZ43 Series 115V)
Documentation & Downloads
Specifications
Key Specifications
- BABA
- Contact Manufacturer
- Nominal Capacity Watts
- 2,286
- Height (H)
- 914
- Depth (D)
- 356
- Remote Access Control
- Yes
- Max Current
- 11.6
- Color Code
- RAL 7035
- Weight
- 106
- Voltage Rating
- 115 V
- Amperage Rating
- 9.9/11.6 A
- Frequency Rating
- 50/60 Hz
Nominal Capacity Btu/h7,800
Nominal Voltage115
Width (W)292
MaterialMild Steel
Operating Temperature-40
Thickness (T)1.27
Product FamilySpectraCool
Sub BrandSpectraCool
BTU Rating7,800
Power1100/1333
ColorLt Gray
