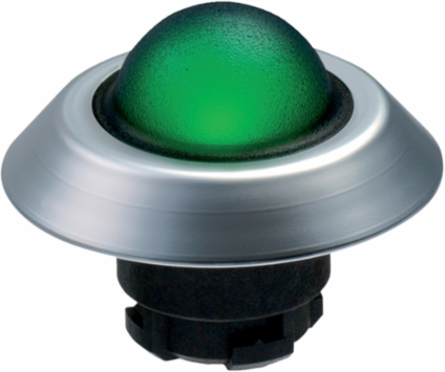

Schmersal 101174527 NMLHGN Illuminated Signal, 44.5 mm Diameter, IP67/IP69K, Green
- MPN: 101174527
- PPN: SCM-101174527
CAD
$36.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NMLHGN Illuminated Signal, 44.5 mm Diameter, IP67/IP69K, Green
Features
- high calotte
- for Ba9S LED's
Documentation & Downloads
Specifications

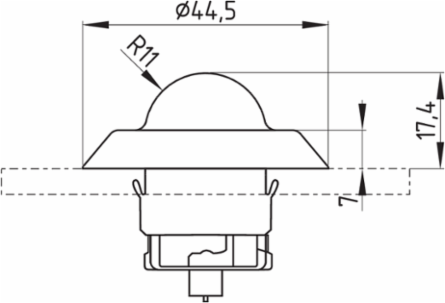

Mechanical data - Dimensions
- Diameter total
- 44.5 mm
- Diameter of the dome
- 26 mm
- Thickness, of the front panel, minimum
- 1.5 mm
- Spacing
- 50 x 50 mm
Height of the dome10.4 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
Scope of delivery
- Note (scope of delivery, number and type)
- Mounting flange ELM is included in delivery
General data - Features
- Illuminable
- Yes
- Fully insulated
- Yes
Mounting flangeYes
General data
- Standards
- EN IEC 60947-5-1 | EN IEC 60947-1
- Design
- High
- Sealing type
- Membrane | Lip gaskets | Form seals
- Material of the front ring
- ABS, chrome-plated
- Colour of the dome
- Green
- Gross weight
- 30 g
VersionsIndicator light
Installation conditions (mechanical)arbitrarily
Material of the domePA (12)
Colour of the operating elementGreen
Colour of the front ringSilver
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Restistance to shock
- 30 g / 18 ms
Ambient temperature-25 ... +80 °C
Mechanical data
- Mounting
- Mounting flange ELM
Tightening torque of the screw0.6 Nm
Approvals - Standards
- Certificates
- BG | cULus | IPA
Status indication
- Note (Integral System Diagnostics, status )
- for 24 VAC/DC
