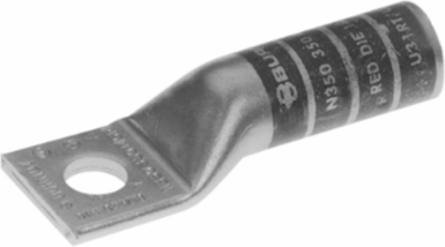

Burndy YA26TC14 HYLUGTM Non-Insulated Terminal Lug 2/0 AWG, 1-9/16 Inch Strip Length, 1/4 Inch Stud Size
- MPN: YA26TC14
- UPC: 781810532690
- PPN: BUR-30014846
CAD
$34.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CU LUG 2/0;1/4 STUD Long
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - L Length Overall mm
- 66 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.83 in
- Dimension - Stud Size inch
- 1/4
Dimension - Hole Size inch0.27 in
Dimension - Length Overall inch2.58 in
Dimension - Outside Diameter inch0.56 in
Dimension - Strip Length inch1-9/16
Thickness - Pad0.12 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Size
- 70 mm²,2/0 AWG
Conductor - MaterialCopper
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Long
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810532690
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
Plating TypeTin - Electro Plated
TypeLong Barrel, Tin Plated
UPC 12 Digit7818105326900
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 250
