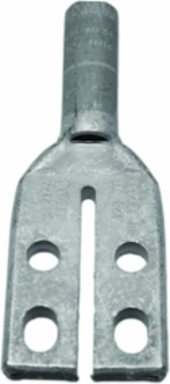

Burndy YAZ264TCG1 HYLUGTM Terminal Connector, 2/0 AWG, 1/4 Inch Bolt Size, 1-9/16 Inch Strip Length
- MPN: YAZ264TCG1
- UPC: 781810636077
- PPN: BUR-50019033
CAD
$118.37
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Hylug,Split Pad, 4 Holes,W/Insp Window, 2/0 AWG Code, 125 Navy, Black, 13 Index, 1/4 IN Bolt Size, 1-9/16 IN Strip Length
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - Length Overall inch
- 3.71 in
- Dimension - Strip Length inch
- 1-9/16
- Physical Attribute - Tongue Angle
- Straight
Dimension - L Length Overall mm94 mm
Dimension - Pad Width inch1.38 in
Dimension - Stud Size inch1/4
Certifications and Compliance
- Certification - CSA Approved
- No
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Size Range
- 2/0 AWG
Conductor - Copper Str Size2/0 AWG
Conductor - MaterialCopper
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Standard
- Plated
- Y
- Temperature Rating
- 194
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818106360777
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810636077
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
