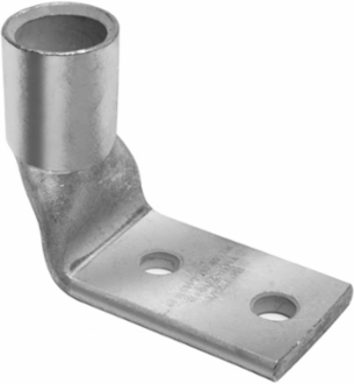

Burndy YA2CL2TC1490 HYLUGTM Copper Terminal Lug, 2 AWG, 600V-35kV, 1/4 Inch Stud, Tin Plated
- MPN: YA2CL2TC1490
- UPC: 781810251294
- PPN: BUR-25021878
CAD
$22.63
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu code conductor std barrel, 2 Holes/W/insp W, #2AWG, 600V-35kV, 1/4" stud, Tin plated, Red, 49 Index , UL Listed 90 Deg C.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 0.88 in
- Dimension - D inch
- 1.27 in
- Dimension - Hole Size inch
- 0.27 in
- Dimension - L Length Overall mm
- 24 mm
- Dimension - N inch
- 0.31 in
- Dimension - Pad Width inch
- 0.60 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- 90 Degree
Dimension - Bolt Hole Size inch0.27 in
Dimension - Height inch1.37 in
Dimension - Hole Size mm7 mm
Dimension - Length Overall inch0.95 in
Dimension - Outside Diameter inch0.42 in
Dimension - Strip Length inch15/16
Dimension - Z inch0.33 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 60 (37) Navy
- Conductor - Copper Str Size
- 2 AWG
Conductor - Copper Str Navy Size Range60 (37) Navy
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plating Type
- Electro Tin Plated
- Temperature Rating
- 194
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818102512944
Color CodeBrown
Die Index10
MaterialCopper
PlatedY
Sub BrandTERMINALS, HYLUG
Trade NameHYLUG™
UPC781810251294
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
