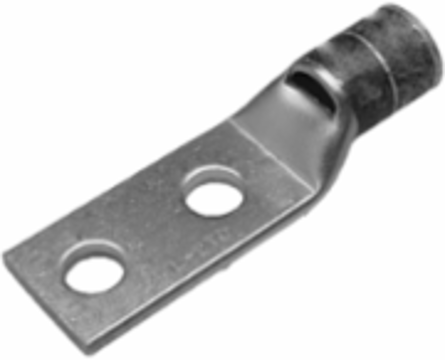

Burndy YA2C2L HYLUGTM Terminal Connector, 2 AWG, 5/16 Inch Stud, Tin Plated, Chamfered Barrel
- MPN: YA2C2L
- UPC: 781810500750
- PPN: BUR-502075
CAD
$14.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu code conductor standard barrel, 2 holes/W/ insp window, 2 AWG, 5/16" stud,Tin plated, Brown,10 index
Documentation & Downloads
Specifications
Dimensions
- Bolt Size
- 5/16 in
- Dimension - B Length inch
- 0.88 in
- Dimension - D inch
- 1.45 in
- Dimension - L Length Overall mm
- 68 mm
- Dimension - N inch
- 0.34 in
- Dimension - Pad Width inch
- 0.60 in
- Dimension - Stud Size inch
- 5/16
- Length
- 2.67 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length fraction7/8 in
Dimension - Bolt Hole Size inch0.33 in
Dimension - Hole Size mm8 mm
Dimension - Length Overall inch2.67 in
Dimension - Outside Diameter inch0.42 in
Dimension - Strip Length inch15/16
Dimension - Z inch0.36 in
Outside Diameter0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size Range
- 60 (37) Navy
- Conductor - Copper Str Size Range
- 2 AWG
Conductor - Copper Str Navy Size60 (37) Navy
Conductor - Copper Str Size2 AWG
Conductor - MaterialCopper
General
- Color Code
- Brown
- Die Index
- 10
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810500750
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeStandard Barrel, Tin Plated
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
