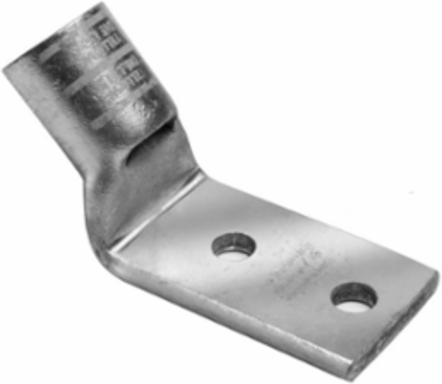

Burndy YA2CL2TC3845 2 AWG Copper Terminal, 2 Hole, 3/8 Inch Stud, 1 Inch Spacing, 45 Degree
- MPN: YA2CL2TC3845
- UPC: 781810019320
- PPN: BUR-50236R
- UNSPSC: 39121405
CAD
$25.51
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
2 AWG CU, Two Hole, 3/8 Stud Size, 1 Hole Spacing, Standard Barrel, Inspection Window, Internal Chamfer, Tin Plated, UL/CSA, 90°C, Up to 35kV, Brown Color Code, 10 Die Index, 45 Degree.
Features
- Barrel designed with internal chamfer at wire entry for smooth insertion of wire, preventing possible damage of the strands
- Standard barrel length is recommended for installations with limited space availability
- Electro-tin plated unless otherwise specified to reduce galvanic corrosion (bimetallic) and resist corrosive elements
- Connectors are clearly marked with stamping and barrel color coding
- 2-Hole design prevents rotation
Specifications
Additional
| Voltage Rating | 35 kV |
|---|---|
| Conductor Size | 2 AWG |
| Stud Size | 3/8 in. |
| Height | 1.15 in. |
| Pad Width | 0.60 in. |
| Die Index | 10 |
| Finish | Electro Tin Plated |
| Barrel Type | Standard |
| Color Code | Brown |
| Country of Origin | US |
| Temperature Rating | 90C (194F) |
|---|---|
| Number of Holes | 2 |
| Length Overall | 2.94 in. |
| Outside Diameter | 0.42 in. |
| Bolt Hole Size | 0.39 in. |
| Material | Copper |
| Barrel Style | Chamfered; Skived |
| Tongue Angle | 45 Degree |
| Compliance | UL Listed, UL 486A-486B, CSA Approved, RoHS CM |
