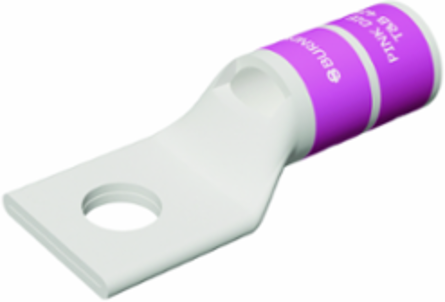

Burndy YA38L Copper Tubing Terminal, 700 kcmil, 5/8 Inch Stud, Tin Plated, UL Listed

MPN: YA38L
UPC: 781810521717
PPN: BUR-510171

$104.54

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Copper Tubing Terminal, 700 kcmil, 5/8 IN Stud, 400 Index

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	1-7/16 in
Dimension - Bolt Hole Size inch	0.66 in
Dimension - D inch	1.33 in
Dimension - L Length Overall mm	93 mm
Dimension - N inch	0.66 in
Dimension - Pad Width inch	1.84 in
Dimension - Stud Size fraction	5/8
Dimension - Z inch	0.67 in

Dimension - B Length inch	1.45 in
Dimension - Bolt Size fraction	5/8
Dimension - Hole Size mm	18 mm
Dimension - Length Overall inch	3.66 in
Dimension - Outside Diameter inch	1.25 in
Dimension - Strip Length inch	1-15/16
Dimension - Stud Size inch	5/8
Physical Attribute - Tongue Angle	Straight

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Industry Standard(s)	UL467
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
Standards - Industry Standards Met	UL467
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Size Range	700 kcmil

Conductor - Copper Str Size	700 kcmil
Conductor - Material	Copper

General

Color Code	Pink
Die Index	400
Material	Copper
Plated	Y
Trade Name	HYLUG™
UPC	781810521717

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	1
Plating Type	Tin - Electro Plated
Type	Standard Barrel, Tin Plated
