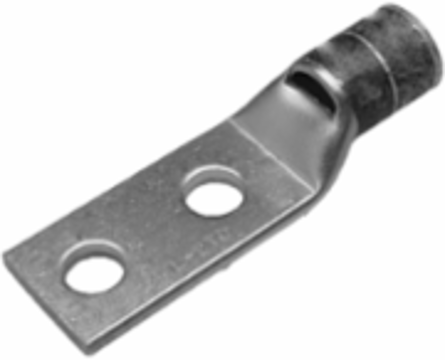

Burndy YAL6C2T14 HYLUGTM Copper Terminal Connector, 6 AWG, 2 Holes, Chamfered Barrel, Blue
- MPN: YAL6C2T14
- UPC: 781810417553
- PPN: BUR-10054976
CAD
$16.65
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Copper HYLUG™ , 2 Hole w/ Inspection Window,6 AWG, 1/4" Stud, 5/8" Stud Hole Spacing,7 index,Blue, Short Barrel, Tin Plated
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 3/4 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.06 in
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.75 in
Dimension - D inch1.20 in
Dimension - L Length Overall mm52 mm
Dimension - N inch0.25 in
Dimension - Pad Width inch0.44 in
Dimension - Z inch0.32 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Solid Size Range
- 6 AWG
- Conductor - Copper Str Size Range
- 6 AWG
Conductor - Copper Solid Size6 AWG
Conductor - Copper Str Size6 AWG
Conductor - MaterialCopper
General
- Color Code
- Blue
- Die Index
- 7
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Temperature Rating
- 194
- Type
- Standard Barrel, Tin Plated
Connector TypeTerminal
Feature - Barrel StyleChamfered
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810417553
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
