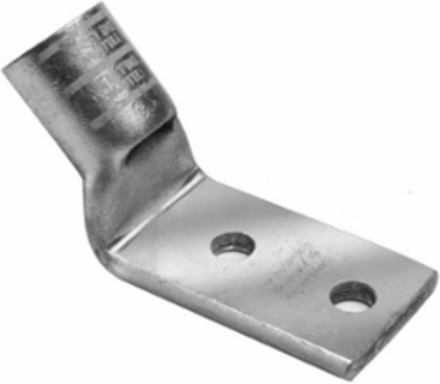

Burndy YAV102TC1045 Standard Barrel Terminal, Tin Plated, 1.33 Inch Length, 2 Holes, 14-10 AWG

MPN: YAV102TC1045
UPC: 781810022115
PPN: BUR-518421

$16.57

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Cu compression std barrel-code conductor, 2 holes/W/ insp window, #14-10 Str.#12-10 Sol,#10 stud, Tin plated,

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction	3/8 in
Dimension - D inch	1.13 in
Dimension - Hole Size inch	0.21 in
Dimension - L Length Overall mm	34 mm
Dimension - N inch	0.25 in
Dimension - Pad Width inch	0.36 in
Dimension - Stud Size inch	#10
Physical Attribute - Tongue Angle	45 Degree

Dimension - B Length inch	0.38 in
Dimension - Height inch	0.54 in
Dimension - Hole Size mm	5 mm
Dimension - Length Overall inch	1.33 in
Dimension - Outside Diameter inch	0.21 in
Dimension - Strip Length inch	7/16
Dimension - Z inch	0.26 in

Certifications and Compliance

Certification - CSA Approved	Yes
Certification - UL Recognized	No
Standards - RoHS Compliance Status	CM

Certification - ETL	No
Certification - cULus	No
UL Listed	Yes

Conductor Related

Conductor - Copper DLO Size Range	N/A
Conductor - Copper Str Size Range	14 AWG-10 AWG

Conductor - Copper Str Size	14 AWG;12 AWG;10 AWG
Conductor - Material	Copper

General

Connector Type	Terminal
Feature - Barrel Type	Standard
Physical Attribute - Number of Holes	2
Plated	Y
Temperature Rating	194
Type	Standard Barrel, Tin Plated
UPC 12 Digit	7818100221155
