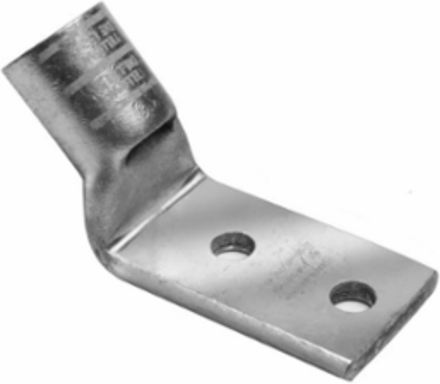

Burndy YAV4CL2TC14FX45 HYLUGTM Terminal Connector, 4 AWG, 600V-35kV, Standard Barrel, 2 Holes
- MPN: YAV4CL2TC14FX45
- UPC: 781810080436
- PPN: BUR-518435
CAD
$24.18
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Cu Tubing Hylug, 2 Holes with Inspection window, #4 AWG Flex,40 & 50 Navy, 600V-35kV, 1/4" stud, Standard, Compression, 0.27 in BCD, Gray
Documentation & Downloads
Specifications
Dimensions
| Dimension - B Length inch | 0.50 in |
|---|---|
| Dimension - Height inch | 0.84 in |
| Dimension - Hole Size mm | 7 mm |
| Dimension - Length Overall inch | 2.06 in |
| Dimension - Outside Diameter inch | 0.38 in |
| Dimension - Strip Length inch | 9/16 |
| Physical Attribute - Tongue Angle | 45 Degree |
| Dimension - Bolt Hole Size inch | 0.27 in |
|---|---|
| Dimension - Hole Size inch | 0.27 in |
| Dimension - L Length Overall mm | 52 mm |
| Dimension - N inch | 0.31 in |
| Dimension - Pad Width inch | 0.55 in |
| Dimension - Z inch | 0.34 in |
Certifications and Compliance
| Certification - CSA Approved | Yes |
|---|---|
| Certification - UL Recognized | No |
| Standards - RoHS Compliance Status | CM |
| Certification - ETL | No |
|---|---|
| Certification - cULus | No |
| UL Listed | Yes |
Conductor Related
| Conductor - Copper DLO Size | 5 (91/#24) DLO;4 (105/#24) DLO |
|---|---|
| Conductor - Copper Flex H Size | 4 AWG |
| Conductor - Copper Flex K Size | 4 AWG |
| Conductor - Copper Solid Size | 4 AWG |
| Conductor - Copper Str Size | 4 AWG |
| Conductor - Material | Copper |
| Conductor - Copper Flex G Size | 4 AWG |
|---|---|
| Conductor - Copper Flex I Size | 4 AWG |
| Conductor - Copper Flex M Size | 4 AWG |
| Conductor - Copper Str Navy Size | 40 (19) Navy;50 (19) Navy |
| Conductor - CopperWeld Str Size | 4 A AWG;4 D AWG;4 N AWG;4 P AWG |
General
| Color Code | Gray |
|---|---|
| Die Index | 8;346 |
| Feature - Barrel Type | Standard |
| Physical Attribute - Number of Holes | 2 |
| Plated | Yes |
| Trade Name | HYLUG™ |
| UPC | 781810080436 |
| Connector Type | Terminal |
|---|---|
| Feature - Barrel Style | Chamfered |
| Material | Copper |
| Physical Attribute - Tongue Type | Standard |
| Plating Type | Tin - Electro Plated |
| Type | Standard Barrel, Tin Plated |
| UPC 12 Digit | 7818100804366 |
Electrical Ratings
| Rating - KVA | 35 kV |
|---|---|
| Voltage - Maximum | 35000 |
| Rating - Minimum Voltage | 600 |
|---|
Logistics
| Minimum Pack Quantity | 10 |
|---|
