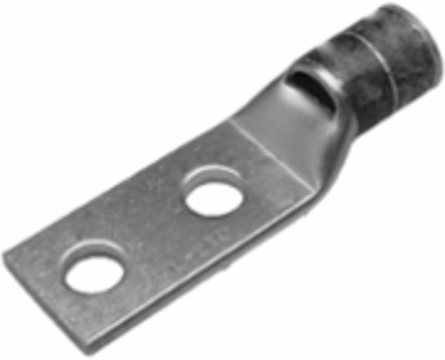

Burndy YA4CL2TC14 HYLUG Standard Length Barrel Terminal, #4 AWG, 2 Hole, 35 kV, Tin Plated
- MPN: YA4CL2TC14
- UPC: 781810503560
- PPN: BUR-50222H
CAD
$10.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CU Compression Terminal Code Conductor, Beveled Entry, 2 Hole/W/InspWindow, #4AWG(Code) 40(Navy), 600V-35kV, 1/4" Stud, 0.62 Spacing, STRD bbl, Tin - Electro Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 13/16 in
- Dimension - Bolt Hole Size inch
- 0.21 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - N inch
- 0.25 in
- Dimension - Pad Width inch
- 0.5 in
- Dimension - Stud Size inch
- 1/4
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch0.81 in
Dimension - Hole Size inch0.21 in
Dimension - Length Overall inch2.24 in
Dimension - Outside Diameter inch0.34 in
Dimension - Strip Length inch7/8 in
Dimension - Z inch0.27
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Industry Standard(s)
- UL468A-468B
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
Standards - Industry Standards MetUL468A-468B
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size Range
- N/A
- Conductor - Copper Str Navy Size
- 40 (19) Navy
- Conductor - Copper Str Size
- #4 AWG
Conductor - Copper Solid Size#4 AWG
Conductor - Copper Str Navy Size Range40 (19) Navy
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Type
- Standard
- Physical Attribute - Number of Holes
- 2
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Standard Barrel, Tin Plated
- UPC 12 Digit
- 7818105035600
Color CodeGray
Die Index8 ; 346
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin Plating
Trade NameHYLUG™
UPC781810503560
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
