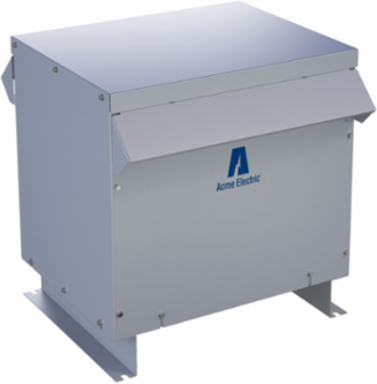

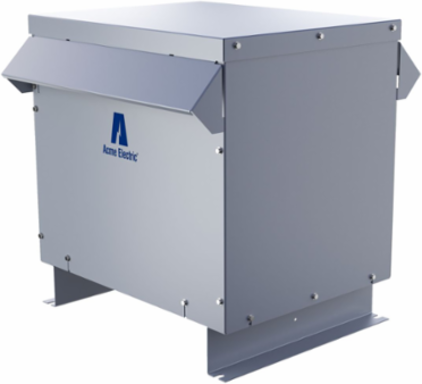

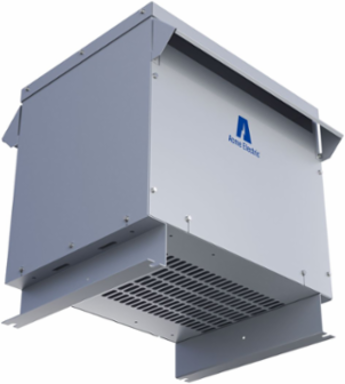

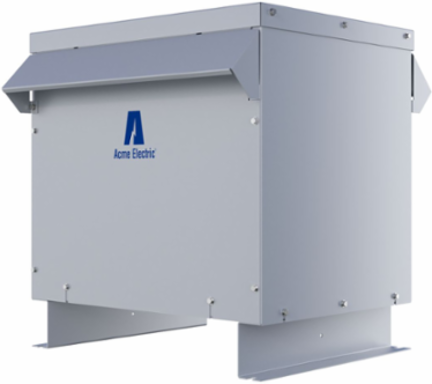

Acme Electric T3015K0013BK13S Non-Linear Load Transformer, 15kVA, 480V Primary, 208Y/120V Secondary
- MPN: T3015K0013BK13S
- UPC: 047503093696
- PPN: HBL-T3015K0013BK13S
- UNSPSC: 39121001
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Non Linear Load Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA, K13
Features
- Copper terminations for trouble free operation
- Wound Core and Strip Winding for Low Losses
- Electrostatic shield for enhanced protection
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- BNFC Taps
- 4
- Dept of Energy Regulation
- Meets or exceed U.S. DOE 10 CFR Part 431
- K Factor
- 13
- Max Temperature Rise
- 150 Degrees Celsius
- Product Type
- Non Linear Load Transformer
- Taps % Steps
- 2.5%
- Frequency Rating
- 60 Hz
- Length
- 19.37 in
- Primary Voltage
- 480D V
- UL Insulation Class
- 220°C
- Weight
- 365 lb.
- Mounting Type
- Floor
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- A
- Sub Class Code
- D10D120
- Winding Material
- AL
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00047503093696
ANFC Taps2
CSA StandardC22.2 No. 47
Dimensions19.37 in x 24.39 in x 25.5 in
kVA15.0
Product CategoryNon Linear Load Transformer
Secondary Voltage208Y/120 V
Efficiency97.89%
Height25.5 in
MountingFloor
Width24.39 in
UL StandardUL 1561
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504320000
Stock IndicatorN - Non-stock
Electrostatic ShieldShielded
ConstructionVentilated
BOX SIZE(in)
NAICS Code335311
Certifications
- Buy American Compliant
- Contact Manufacturer
