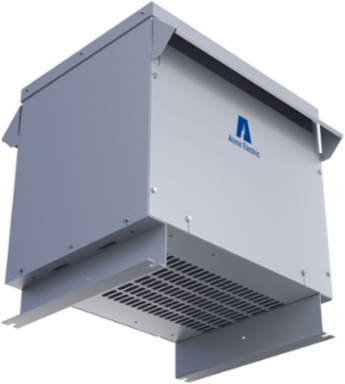

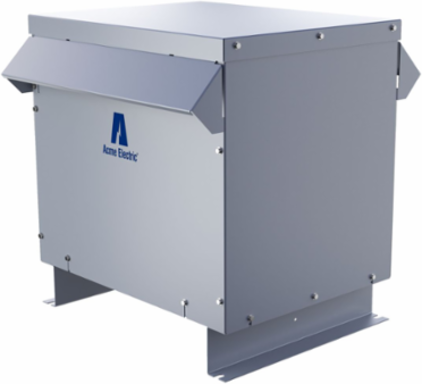

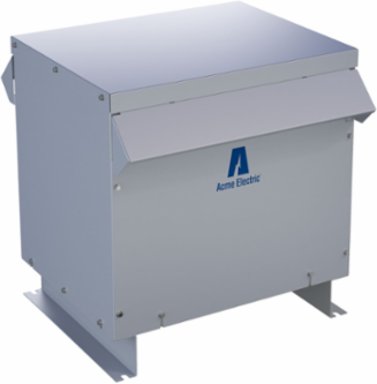

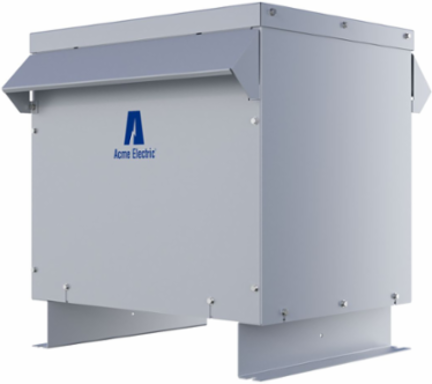

Acme Electric T3015K0013BK4S Non Linear Load Transformer 15kVA 480V to 208Y/120V 24.39 Inch Width

MPN: T3015K0013BK4S
UPC: 047503093795
PPN: HBL-T3015K0013BK4S
UNSPSC: 39121001

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Non Linear Load Transformer - Three Phase, 480Δ - 208Y/120V, 15kVA, K4

Features

Copper terminations for trouble free operation
Wound Core and Strip Winding for Low Losses
Electrostatic shield for enhanced protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Mexico
BNFC Taps	4
Dept of Energy Regulation	Meets or exceed U.S. DOE 10 CFR Part 431
K Factor	4
Max Temperature Rise	150 Degrees Celsius
Product Type	Non Linear Load Transformer
Taps % Steps	2.5%
Frequency Rating	60 Hz
Length	19.37 in
Primary Voltage	480D V
UL Insulation Class	220°C
Weight	300 lb.
Mounting Type	Floor
ARRA Compliant	Contact Manufacturer
Freight Class Code	06342001
Image Actual Or Representative	A
Sub Class Code	D10D120
Electrostatic Shield	Shielded
Construction	Ventilated
BOX SIZE	32.000x36.000x36.000 (in)
Pallet Height	32.000 in
Pallet Weight	315.000 lb.
NAICS Code	335311

ANFC Taps	2
CSA Standard	C22.2 No. 47
Dimensions	19.37 in x 24.39 in x 25.5 in
kVA	15.0
Product Category	Non Linear Load Transformer
Secondary Voltage	208Y/120 V
Efficiency	97.89%
Height	25.5 in
Mounting	Floor
Width	24.39 in
UL Standard	UL 1561
Material type	ZFIN
Nema Rating	NEMA 3R
Class Code	D10
Harmonization Code	8504320000
Stock Indicator	N - Non-stock
Buy America(n) Qualified	Contact Manufacturer
Winding Material	AL
Base Unit of Measure	EA
Carton - SCC-14 Next Lower Level Sub Pack	00047503093795
Pallet Length	48.000 in
Pallet Width	40.000 in
