Hubbell Premise Wiring

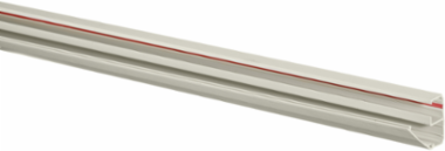

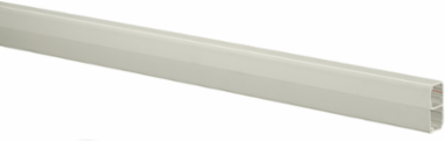

Hubbell Premise Wiring PW2BC7 Non-Metallic Latching Raceway 7 ft, Thermoplastic, NEMA 1 Rating

Non-Metallic Latching Raceway 7 ft, Thermoplastic, NEMA 1 Rating
Non-Metallic Latching Raceway 7 ft, Thermoplastic, NEMA 1 Rating
Non-Metallic Latching Raceway 7 ft, Thermoplastic, NEMA 1 Rating
  • MPN: PW2BC7
  • UPC: 783585090627
  • PPN: HBL-PW2BC7
  • UNSPSC: 39131710

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$11.34/ EA

Description

Non-Metallic Raceway, Latching WallTrak, WallTRAK2,Base and Cover, 7'

Features

  • UL Listed and CSA Certified to 600 volts
  • Single and two channel latching raceways are dual-rated for both power and data applications, reducing inventory requirements
  • Standard

Specifications

Specifications

Country of Origin
United States
Industry Standard(s)
CSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
Application
7' Base and Cover
Enclosure
NEMA 1 Rating
Length
7 ft
Special Features
Standard
Type
Base and Cover
Enclosure Type
NEMA 1 Rating
Description - Invoice
WALLTRAK2, BS+CRV, 7'
Harmonization Code
3926909985
MSDS Flag
No
Construction
Extruded Plastic
Series
PW2
BOX SIZE
2.755x84.875x11.185 (in)
Carton - Number of Sub Packs
70
Carton - SCC-14 Next Lower Level Sub Pack
00783585090627
Each - Number of Sub Packs
1
Package - Total Units
1 EA
ColorOffice White
PerformanceEnvironmental - Flame Rating - UL94V-0;Environmental - Temperature Range - -25.6° to 158° F
Cover TypeRemovable
KnockoutsNone
Non Hazardous LocationNon Hazardous
StandardCSA Standard C22.2 no. 62;E118895 / E119190;UL Standard UL 5A
Width2.12 in
StyleTwo Channel, Latching
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog NumberMT8BC7;JPT800
MaterialThermoplastic
Base Unit of MeasureFT
Carton - Gross Weight per Pack24.700 lb.
Carton - Pack DescriptionCarton
Carton - Total Units70 EA
Each - Pack DescriptionFeet
Package Quantity1 EA

Certifications

EU RoHS Indicator
Yes
