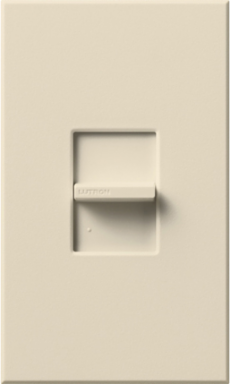

Lutron NTCL-250-LA Nova T LED+ Dimmer, 250W LED/CFL, 1000W Incandescent, Light Almond Finish
Lutron NTCL-250-LA Nova T LED+ Dimmer, 250W LED/CFL, 1000W Incandescent, Light Almond Finish
- MPN: NTCL-250-LA
- UPC: 784276107556
- PPN: LUT-NTCL-250-LA
- UNSPSC: 39122206
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$116.45/ EA
Features
- Available for 120-277V line voltage switching (sink- only control) 0 - 10 V- LED drivers and ballasts (power pack not required for loads up to 8 A)
- Excellent for residential or commercial applications
- Intuitive operation; easy to use
- Slide-to-off and preset models available
- Enclosed heat sink for aesthetically pleasing appearance
- Multi-gang alignment for quick and easy installation
- Full family of products for most lighting sources, plus matching accessories and wallplates
- Rated at 120V, 60Hz, unless noted otherwise
- Custom products (CPN) are available to meet specific customer needs. Please contact Lutron Customer Assistance at 1.844.LUTRON1 (588.7661) for availability
- C.L dimmer controls 250 W dimmable LED/CFL (screw-base), 1000 W incandescent/halogen, or 400 W Hi-Lume 1 percent 2-wire LED driver (max 10) loads
- Slide up to brighten, down to dim
- Provides reliable dimming of dimmable LEDs/CFLs, as well as halogens and incandescents.
Specifications
Specifications
- Environmental Conditions
- 0 to 90% humidity, non-condensing. Indoor use only.
- Aesthetic Finish
- Matte
- Application
- Lighting Control
- Type
- Slide-to-off dimmer, single-pole
- Connection Type
- Wire Leads
- Switch Type
- Slide
- Decorative Color
- Light Almond
- Face Material
- Metal;Plastic
- Finish
- Matte
- Size
- 4.56 x 2.75;116 x 70 in;mm
- Actuator
- Slide
- Operating Temperature
- 32 to 104 F
- Color
- Light Almond
Wattage1000 W
Operating Temperature, Minimum32 F
Operating Temperature, Maximum104 F
Voltage Rating120
Frequency Rating, Maximum60 Hz
Number of Poles1
Family ColorBeige
EnclosurePlastic
InsulationPlastic
ConnectionWire Leads
MaterialPlastic/Metal
MountingWallbox
