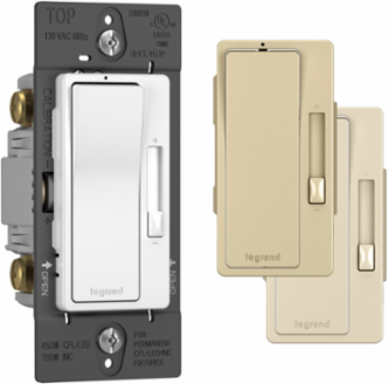

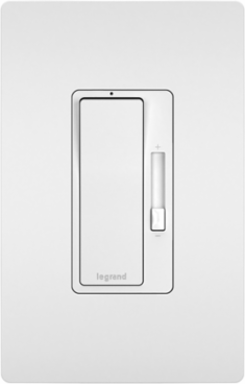

Radiant RHCL453PTC radiant® CFL/LED Dimmer
- MPN: RHCL453PTC
- UPC: 785007053487
- PPN: P-S-RHCL453PTC
- UNSPSC: 39122206
CAD
$58.51
/ EA
Available to Order from Manufacturer
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Upgrade your space with precise dimming control and exceptional style, with this dimmer designed for use with most compact fluorescent and LED dimmable bulbs (not for use with 0-10V options). Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Replaces any basic switch or dimmer with ease, in both single-pole and 3-way applications. Rated for use with the following dimmable bulb types: 450W LED,CFL, 700W Incandescent, or 120VAC, 60Hz
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level after a power failure or outage.
- Adjustment dial allows users to adjust the bottom of the dimming range for a broad selection of CFL and LED bulbs.
- No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Height | 4.25 in |
| Color | Ivory,Light Almond,White |
| Material | Steel,Thermoplastic |
| Warranty Type | Limited Lifetime Warranty |
| Mounting Type | Wall Box |
| Connection | Screw Terminals |
| Standard | CSA Listed; cULus; UL Listed |
| Environmental Conditions | Humidity: Less than 95% non condensing |
| Compatible Add-Ons | RHKIT |
| Wire Size | #14 - #10 AWG |
| Frequency Rating | 60 Hz |
| Indoor/Outdoor | Indoor |
| Features | Low-End Trim (Dim Range); Color Change Kit; Locator Light |
| Dimming Compatibility | Forward Phase |
| Preset | Yes |
| Load Type | CFL; Incandescent; Halogen; LED |
| Depth | 1.25 in |
|---|---|
| Width | 1.75 in |
| Finish | Matte |
| Product Line | Pass & Seymour |
| Application Sector | Residential |
| Type | Dimmer |
| Number of Switches | 1.0 |
| Jigsaw Channel Availability | Distribution |
| Special Features | The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation. |
| Number of Poles | Single Pole 3-Way |
| Requires Neutral Wire | No |
| Wire Connection Type | Screw Terminals |
| Voltage | 120 VAC |
| Load Rating | 120V 450W (LED); 120V 450W (CFL); 120V 700W (Incandescent); 120V 700W (Halogen) |
| Switch Type | Paddle; Slider |
| Maximum Humidity | 95% (relative humidity, non-condensing) |
