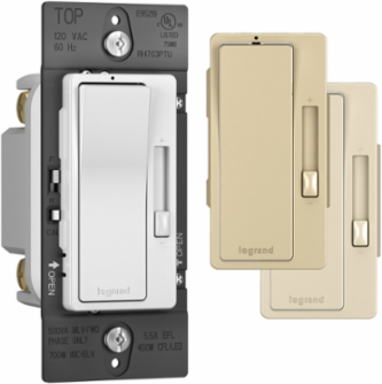

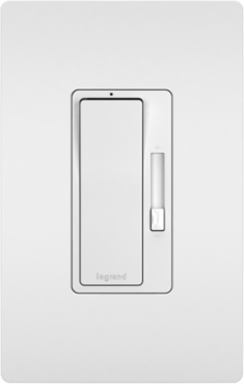

Radiant RH703PTUTC radiant® Tru-Universal Single Pole/3-Way Dimmer, Tri-Color
Radiant RH703PTUTC radiant® Tru-Universal Single Pole/3-Way Dimmer, Tri-Color
- MPN: RH703PTUTC
- UPC: 785007053470
- PPN: P-S-RH703PTUTC
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$71.66/ EA
Description
Upgrade your space with superior dimming control and exceptional style. The radiant® Tru-Universal Dimmer works with virtually any 120V dimmable bulb or fixture, adjusting to the precise light level you want, without the flicker. Unsure what dimmer your bulb needs? Avoid uncertainty with Tru-Universal Dimming. Part of the radiant® Collection, it also features clean lines and smooth control for a sophisticated touch. Made exclusively for use with screwless Wall Plates from the radiant® Collection, sold separately.
Features
- Works with virtually any 120V dimmable bulb or fixture on typical residential (and light commercial) wiring. Usable in both single-pole and 3-way applications.
- Self-calibrates when you select your fixture's lighting type, automatically setting the appropriate minimum voltage to eliminate flicker and poor performance.
- Low-profile paddle switch offers smoother On/Off control, while a separate, ergonomic slider allows you to adjust light levels with precision.
- Locator light illuminates when switch is off, emitting a soft glow to help you find it in the dark.
- Constant memory features returns lights to their previous level when turning back on or after a power outage.
- No derating* required in multi-gang applications. *Reducing the maximum wattage a dimmer can handle. This is sometimes required for multi-gang applications.
- Features durable, high-impact resistant thermoplastic construction.
- More color options available to fit any style, including finishes to match current hardware and lighting trends.
- Complete the look with a sleek, screwless radiant® Wall Plate, and coordinate with other designer switches and outlets available from the radiant® Collection.
Specifications
Specifications
- Depth
- 1.25 in
- Height
- 4.25 in
- Load Type
- CFL
- Country of Origin
- China
- Voltage
- 120 VAC
- Standard
- UL Listed
- Switch Type
- Slider
- Indoor/Outdoor
- Indoor
- Features
- Locator Light
- Load Type
- Incandescent
- Number of Switches
- 1.0
- Compatible Add-Ons
- RHKIT
- Connection
- Screw Terminals
- Load Rating
- 120V 700W (ELV)
- Application Sector
- Commercial
- Application Sector
- Residential
- Features
- Auto-Calibration (Trim)
- Load Rating
- 120V 4.5A 450W (LED)
- Number of Poles
- Single Pole 3-Way
- Special Features
- The radiant® collection is a step up from the standard with simple, classic options in wiring devices, home automation controls and screwless wall plates that complement today's homes. This dimmer is multi-location dimming with 3-Way wiring for simple installation.
- Load Rating
- 120V 700W (Incandescent)
- Application Sector
- Multi-Dwelling Unit
- Jigsaw Channel Availability
- Distribution
- Dimming Compatibility
- Forward or Reverse Selectable Phase
- Color
- Ivory,Light Almond,White
- Material
- Steel,Thermoplastic
TypeDimmer
Width1.75 in
Load TypeLED
StandardcULus
Load TypeHalogen
Switch TypePaddle
StandardCSA Listed
Load TypeFluorescent
Frequency Rating60 Hz
Mounting TypeWall Box
Wire Size#14 - #10 AWG
Requires Neutral WireYes
Load Rating120V 5.5A (EFL)
Load Rating120V 500VA (MLV)
Application SectorHospitality
Load Rating120V 700W (Halogen)
Load Rating120V 4.5A 450W (CFL)
FeaturesLow-End Trim (Dim Range)
FeaturesHigh-End Trim (Dim Range)
Application SectorLight Commercial
Wire Connection TypeScrew Terminals
Warranty TypeLimited Lifetime Warranty
Maximum Humidity95% (relative humidity, non-condensing)
Environmental ConditionsHumidity: Less than 95% non condensing
FinishMatte
Product LinePass & Seymour
