Square D NQSFB4Q NQ Panelboard Sub Feed Breaker Kit, 400 A Dual Q Frame
- MPN: NQSFB4Q
- UPC: 785901666165
- PPN: SCH-NQSFB4Q
CAD
$1872.43
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

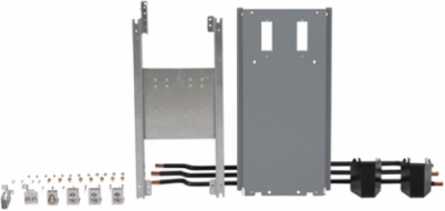

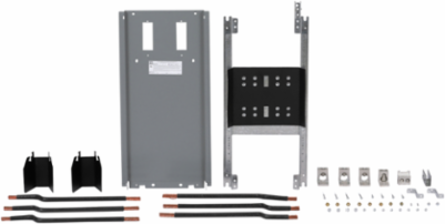

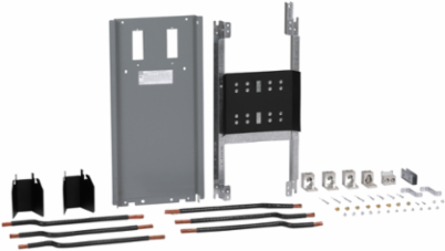

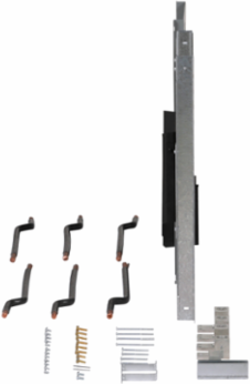

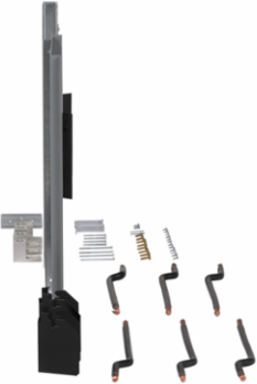

NQ Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NQ Panelboards have modular construction to accept field installable accessories and conversion kits. This accessory is an adapter kit to allow installation of single or dual sub feed Q-Frame circuit breakers. The kit includes sub feed circuit breaker mounting pan assembly, sub feed circuit breaker cover, neutral and load lugs, main lug wires, and tapping screws. The structure accepts 2 or 3 pole breakers and can fit one or two PowerPact Q-Frame molded case circuit breakers rated up to 225A.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Line Rated Current | 400-400 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, OM |
|---|---|
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Weee Product Category | 5 |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Product Availability | Stock - Normally stocked in distribution facility |
| Returnability | Yes |
| Tightening Torque | 6.8-7.3 N.m (1/0 AWG...750 kcmil) |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Persona Type Names | End User, Contractor, Original Equipment Manufacturer |
|---|---|
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Energy Efficiency Optimized | False |
| Product Or Component Type | installation kit |
| Sustainable Packaging | No |
| Certificate Agency | CSA |
| Package Weight(Lbs) | 9.843 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
General Attributes
| Product Or Component Type | installation kit |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
