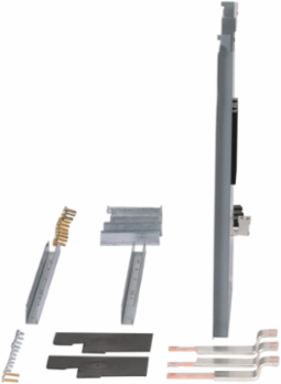

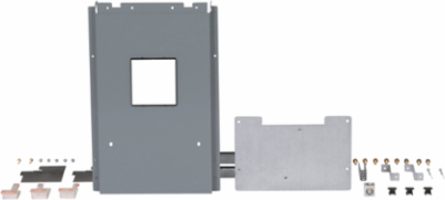

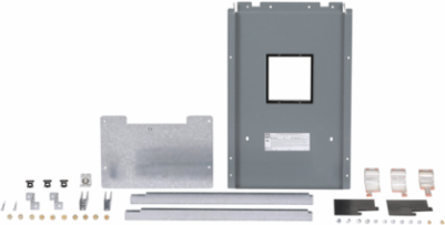

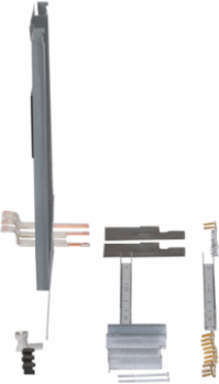

Square D NF250SFBJ 250A Subfeed Breaker Kit for J Frame Circuit Breakers
- MPN: NF250SFBJ
- UPC: 785901538752
- PPN: SCH-NF250SFBJ
CAD
$1015.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
NF Panelboard interiors can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These interiors provide protection for commercial and industrial applications. NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a breaker kit used for sub feed systems. This kit is rated at 250A and for J frame breakers. This sub feed lug kit is UL listed and CSA certified by UL.
Documentation & Downloads
Specifications
Key Specifications
- Circuit Breaker Type
- J-frame
- Provided Equipment
- cover plate 1 || mounting plate 1 || bracket for support 2 || screw set 1 || connector 3 || rail extension 2 || rail splice 2 || terminal 3 || lug 1 || terminal shield 2
Product Or Component TypeCircuit Breaker Sub-Feed Lug
Complementary
- [In] Rated Current
- 250-250 A
Tightening Torque2.8-3.4 N.m
Environment
- Product Certifications
- cULus
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Pro-active China RoHS declaration (out of China RoHS legal scope)
- Mercury Free
- Yes
- Eu Rohs Directive
- Compliant
- Reach Free Of Svhc
- Yes
Rohs Exemption InformationYes
Toxic Heavy Metal FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
