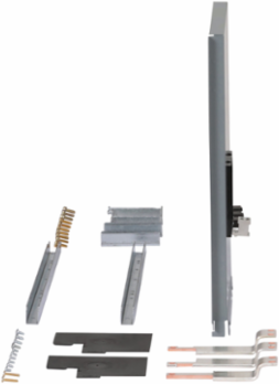

Square D NF250SFBH Panelboard H-Frame Subfeed Breaker Kit, 250A, Mercury Free
- MPN: NF250SFBH
- UPC: 785901834717
- PPN: SCH-NF250SFBH
CAD
$1015.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. NF Panelboards have modular construction to accept field installable accessories and conversion kits. This panelboard accessory is a breaker kit used for sub feed systems. This kit is rated at 250A and for H frame breakers. This sub feed breaker kit is UL listed and CSA certified by UL.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
Complementary Attributes
- Line Rated Current
- 250-250 A
Important Information Attributes
- Persona Type Ids
- EU, LC, OM
- Provided Equipment

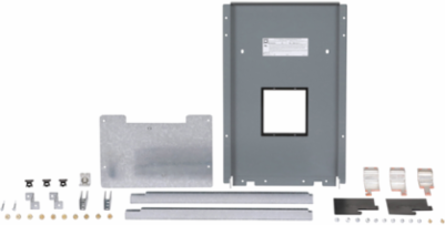

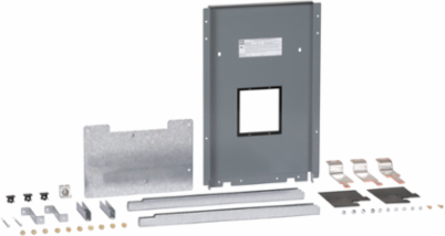

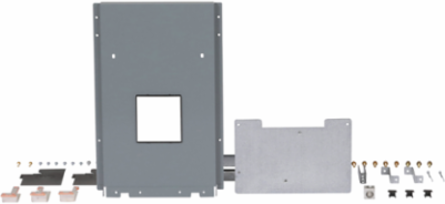

- cover plate 1, mounting plate 1, bracket for support 2, screw set 1, connector 3, rail extension 2, rail splice 2, terminal 3, lug 1, terminal shield 2
- Local Publishable Date
- 2025-11-13
- Stocking Flag
- N
- Weee Scope
- In
- Scope Perimeter
- Outside of Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Market Segmentation
- Commercial
- Circuit Breaker Type
- H-frame
- Product Availability
- Stock - Normally stocked in distribution facility
- Returnability
- Yes
- Tightening Torque
- 2.8-3.4 N.m
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Energy Efficiency OptimizedFalse
Product Or Component TypeCircuit Breaker Sub-Feed Lug
Sustainable PackagingNo
Certificate AgencycULus
Package Weight(Lbs)5.02 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Eu Rohs Directive
- Compliant
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
General Attributes
- Provided Equipment
- cover plate 1, mounting plate 1, bracket for support 2, screw set 1, connector 3, rail extension 2, rail splice 2, terminal 3, lug 1, terminal shield 2
Product Or Component TypeCircuit Breaker Sub-Feed Lug
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
