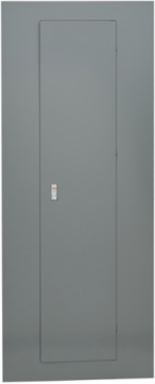

Square D MHC50S Panelboard Enclosure Cover, 20 Inch W x 50 Inch H, Painted Steel, NEMA 1
- MPN: MHC50S
- UPC: 785901053774
- PPN: SCH-MHC50S
CAD
$335.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Designed for durability and reliability, this surface cover for panelboards is an essential component for any electrical installation. Manufactured by Schneider Electric, it features a robust painted steel construction that meets NEMA 1 standards, ensuring protection in a variety of environments. With dimensions of 20 inches in width and 50 inches in height, this enclosure cover is designed for surface mounting and is compliant with both EU and China RoHS regulations, reflecting a commitment to environmental safety. Weighing in at 115.85 kg, it offers a substantial presence while providing peace of mind with its cULus certification and an 18-month warranty. This product is mercury-free and free from toxic heavy metals, making it a responsible choice for modern electrical applications.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|
Complementary Attributes
| Line Rated Current | 250 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 6.035756668437148, 6 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.00001165053940076279, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2025-11-13 |
| Stocking Flag | Y |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 3 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Cover Type | surface cover |
| Energy Efficiency Optimized | False |
| Product Or Component Type | surface cover |
| Returnability | No |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2510012EN |
| Pep Verification Date | 2025-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | 50.12 in |
| Certificate Agency | cULus |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8538908160 |
| Persona Type Names | End User, Contractor |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 17 kg CO2 eq., 17.105642466886806 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 72 kg CO2 eq., 71.73758117903517 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Enclosure Material | painted steel |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 95 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Functional-unit Description | Protect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years. |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; Mexico, MX |
| Energy Model - Use [B6] | Electricity origin |
| Recyclability Potential In % | 97 |
| Width Nominal | 20.12 in |
| [Ue] Rated Operational Voltage | 240 V AC |
| Package Weight(Lbs) | 11.585 kg |
| Warranty (In Months) | 18 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Reach Free Shvc | Yes |
| Toxic Heavy Metal Free | Yes |
| Carbon Footprint | 94.87899196489853 |
| Eu Rohs Directive | Compliant |
| Packaging Made With Recycled Cardboard | No |
| Reach Free Of Svhc | Yes |
| Pep Code | ENVPEP2510012EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2510012EN |
| Nema Degree Of Protection | NEMA 1 |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
| Pep Verification Date | 2025-11-01 |
| Psr Version | PSR-0005-ed3.1-EN-2023 12 08 |
General Attributes
| Product Or Component Type | surface cover |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
