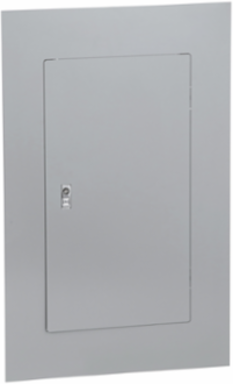

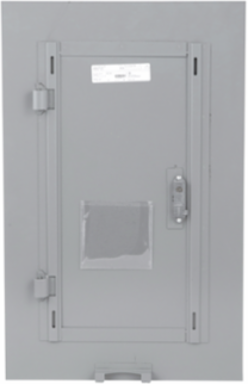

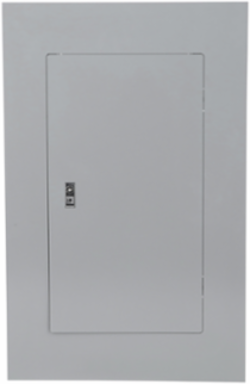

Square D NC32S NEMA 1 Surface Enclosure Cover, 20 Inch W x 32 Inch H, Steel, Grey
- MPN: NC32S
- UPC: 785901798842
- PPN: SCH-NC32S
CAD
$195.19
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NQ and NF Panelboards applications include commercial buildings, industrial buildings, data centers, stadiums, and offices. NQ and NF Panelboards are versatile panelboards that feature a wide selection of circuit breakers, accessories, and ready to install kits. These panelboards have many different options for your enclosure box and its accessories. This enclosure cover is a steel Type 1 for surface mount NF and NQ panelboards. This cover is for a 20 inch width x 32 inch height box. NQ and NF enclosures are UL listed for use in the USA and Canada.
Features
- Featuring Schneider Electric's signature Mono-Flat design, this 20-inch wide by 32-inch high surface-mount cover delivers a highly professional, low-profile aesthetic for indoor distribution boards. The heavy-duty, grey-painted steel construction seamlessly blends into commercial utility rooms while physically concealing live interior wiring, actively protecting your sensitive circuitry from unauthorized tampering or accidental physical impact.
- Built to strict NEMA 1 specifications, this rugged steel panelboard cover provides an essential dead-front barrier against falling dirt, dust accumulation, and accidental personnel contact. This targeted physical protection ensures your commercial electrical distribution systems remain clean and operational, drastically reducing routine maintenance intervals and extending the functional lifespan of your internal branch breakers.
- Fully UL Listed to standard UL 67 and CSA Certified, this industrial-grade panelboard trim satisfies the most rigorous North American regulatory requirements for commercial electrical enclosures. Relying on factory-tested, code-compliant enclosure accessories ensures rapid, hassle-free sign-offs from strict local electrical inspectors and guarantees that your facility's power infrastructure meets required workplace safety protocols.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Costa Rica, Mexico, United States, Vietnam
Physical Attributes
- Color
- Gray
Complementary Attributes
- Line Rated Current
- 125 A
Important Information Attributes
- Persona Type Ids
- EU, EUA, LC, OM, SC
- Carbon Footprint Of The Distribution Phase [A4]
- 3.636617019264378, 4 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.02904228836927558, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-03-26
- Stocking Flag
- N
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 2532
- China Rohs In Scope
- No
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Commercial
- Cover Type
- surface cover
- Energy Efficiency Optimized
- False
- Product Or Component Type
- surface cover
- Software Version
- v6.2.5-6
- Tightening Torque
- Cover 10...12 lb.in
- Pep Code
- ENVPEP2509015EN
- Pep Verification Date
- 2025-09-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 32 in
- Certificate Agency
- cULus
- Package Weight(Lbs)
- 7.620 kg
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Consumer, Contractor, Original Equipment Manufacturer, Electrician
Carbon Footprint Of The End-of-life Phase [C1 To C4]10 kg CO2 eq., 9.797895234680539
Carbon Footprint Of The Manufacturing Phase [A1 To A3]61 kg CO2 eq., 60.65425803467909
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Label1
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdCOMMERCIAL
Product Kit IdentifierN
Enclosure Materialsteel
Product AvailabilityStock - Normally stocked in distribution facility
ReturnabilityYes
Sustainable PackagingNo
Total Lifecycle Carbon Footprint74 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect people from direct contact with live active parts and ensure the grouping of control, command and protection devices in a single enclosure or cabinet having the following dimensions H x L x D or an assembly of X enclosures or cabinets having the following dimensions H x L x D, with rated current In, while protecting them against mechanical impacts (IK) and the penetration of solid objects and liquids (IP), according to the appropriate use scenario, and for the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; United States, US
Energy Model - Use [B6]Electricity origin
Recyclability Potential In %97
Width Nominal20 in
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8538908160
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
- Reach Free Shvc
- Yes
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 74.11781257699329
- Eu Rohs Directive
- Compliant
- Packaging Made With Recycled Cardboard
- No
- Reach Free Of Svhc
- Yes
- Pep Code
- ENVPEP2509015EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Environmental DisclosureENVPEP2509015EN
Nema Degree Of ProtectionNEMA 1
Packaging Without Single Use PlasticNo
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2025-09-01
Psr VersionPSR-0005-ed3.1-EN-2023 12 08
General Attributes
- Product Or Component Type
- surface cover
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
