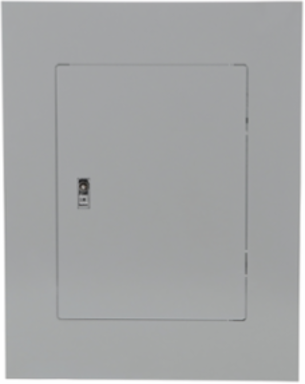

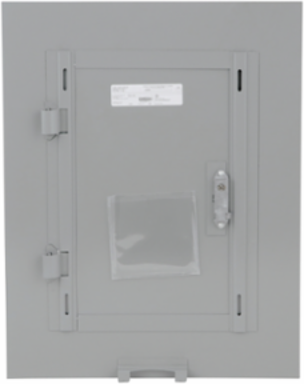

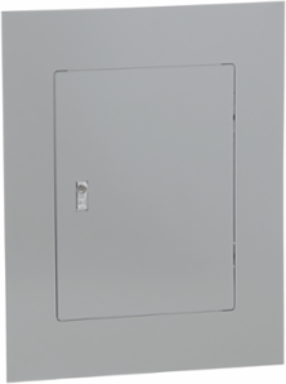

Square D NC26S NEMA 1 Surface Enclosure Cover, 20 Inch W x 26 Inch H, Steel
- MPN: NC26S
- UPC: 785901798828
- PPN: SCH-NC26S
CAD
$175.47
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
NF & NQ Panelboards can be used for applications such as commercial buildings, industrial buildings, stadiums, and offices. These panelboards provide protection for commercial and industrial applications. These versatile panelboards feature a wide selection of circuit breakers, accessories, and ready to install kits. This steel NEMA 1 rated cover is for NF and NQ panelboards. This surface cover is painted grey. This surface cover is 26 inches tall and 20 inches wide. This panelboard cover is UL Listed and CSA certified by UL.
Features
- Specifically engineered as a surface-mount cover for Schneider Electric/Square D NQ and NF series lighting interiors, the NC26S provides a precise, flush fit for 26-inch wide enclosures. This ensures your electrical assembly maintains its NEMA 1 rating, keeping internal busbars and breakers safely shielded from accidental contact by unauthorized personnel.
- Constructed from gauge-certified cold rolled steel and finished with a durable gray baked enamel (ANSI 49) powder coat, this cover is built to resist corrosion and physical impact. For the commercial electrician, this means a professional, "clean" finish that won't warp or chip, maintaining the aesthetic and structural integrity of the electrical room for decades.
- Unlike standard residential covers, the NC26S utilizes an internal trim mounting system that prevents the cover from being easily tampered with or removed while the door is locked. This provides an essential layer of security for schools, hospitals, and retail spaces where preventing unauthorized access to circuit breakers is a critical safety requirement.
- The NC26S is designed with integrated ventilation slots that promote natural convection cooling within the enclosure. By facilitating heat dissipation from high-amperage branch breakers, it helps maintain the thermal stability of the panelboard, reducing the risk of nuisance tripping during peak load periods in mission-critical facilities.
Documentation & Downloads
Specifications
Additional
- Enclosure Rating
- NEMA 1
- Width
- 20 in
- Cover Type
- Surface Cover
- Country of Origin
- US
- Mercury Free
- Yes
- Reach Regulation
- Contains Substances of Very High Concern above threshold
- China RoHS Regulation
- X
- Sustainable Offer Status
- Green Premium product
- Colour
- Gray
Height26 in
MaterialSteel
Product CertificationscULus
Toxic Heavy Metal FreeYes
RoHS CompliancePro-active compliance (Product out of EU RoHS legal scope)
RoHS Exemption InformationYes
Environmental DisclosureENVPEP1404010EN
Warranty18 months
