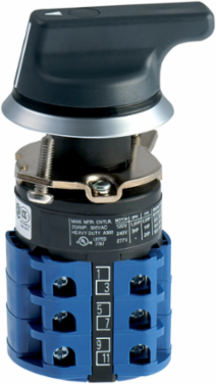

Schmersal 101190552 NWSE Step Switch 5 Positions, 60 Angle, IP67/IP69K, 5,500W AC-3
- MPN: 101190552
- PPN: SCM-101190552
CAD
$281.08
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NWSE Step Switch 5 Positions, 60 Angle, IP67/IP69K, 5,500W AC-3
Documentation & Downloads
Specifications
Key Specifications
| Height | 26 mm |
|---|
Electrical data
| Thermal test current | 20 A |
|---|---|
| Switching capacity, AC-23 | 7,500 W |
| Switching capacity, AC-3 | 5,500 W |
|---|
Note
| Note (General) | A protection against corrosion for the electrical elements behind the front plate cannot be guaranteed. | If a zero position is required, we recommend to use stage 1 (contact 1) to that effect and not to assign it. |
|---|
Mechanical data - Dimensions
| Height | 26 mm |
|---|---|
| Diameter of the front ring | 44.5 mm |
| Diameter of the knob | 39 mm |
| Thickness, of the front panel, minimum | 1.5 mm |
| Spacing | 50 x 50 mm |
| Mounting depth | 69.5 mm |
|---|---|
| Length of the handle | 46 mm |
| Mounting diameter | 22.3 mm |
| Thickness of the front panel, maximum | 6 mm |
Ambient conditions - Insulation values
| Rated insulation voltage U | 690 V |
|---|
General data - Features
| Latching | Yes |
|---|---|
| Number of switch positions | 5 |
| Fully insulated | Yes |
|---|
General data
| Standards | EN IEC 60947-5-1 |
|---|---|
| Design | Long toggle |
| Toggle | long |
| Material of the operators | ABS |
| Colour of the operating element | Black |
| Colour of the handle | Grey |
| Gross weight | 140 g |
| Versions | Step selector switch |
|---|---|
| Installation conditions (mechanical) | arbitrarily |
| Sealing type | Membrane | Lip gaskets |
| Material of the front ring | ABS, chrome-plated |
| Colour of the front ring | Silver |
| Colour of the bellows | Black |
Ambient conditions
| Degree of protection | IP67 | IP69K |
|---|---|
| Resistance to vibrations | 10 - 150 Hz (0.5 mm / 5 g) |
| Ambient temperature | +0 ... +80 °C |
|---|---|
| Restistance to shock | 50 g |
Mechanical data - Connection technique
| Termination | Screw terminals M20 x 1.5 |
|---|
Mechanical data
| switching angle | 60 ° |
|---|---|
| Tightening torque of the screw | 0.6 Nm |
| Mounting | mounting flange |
|---|
Approvals - Standards
| Certificates | BG | IPA |
|---|
