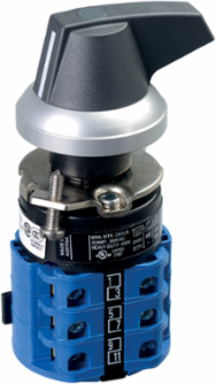

Schmersal 101195864 RWSE10K.1 Step Switch, 22.3 mm Diameter, IP65, 10 Positions, 7,500 W Capacity

MPN: 101195864
PPN: SCM-101195864

$519.51

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

RWSE10K.1 Step Switch, 22.3 mm Diameter, IP65, 10 Positions, 7,500 W Capacity

Specifications

Key Specifications

Height	32 mm

Electrical data

Thermal test current	20 A
Switching capacity, AC-23	7,500 W

Switching capacity, AC-3	5,500 W

Mechanical data - Dimensions

Height	32 mm
Diameter of the front ring	39.5 mm
Diameter of the knob	54 mm
Thickness, of the front panel, minimum	1.5 mm
Spacing	50 x 50 mm

Mounting depth	87.5 mm
Length of the handle	34 mm
Mounting diameter	22.3 mm
Thickness of the front panel, maximum	6 mm

Ambient conditions - Insulation values

Rated insulation voltage U	690 V

General data - Features

Latching	Yes
Number of switch positions	10

Fully insulated	Yes

General data

Versions	Toggle
Sealing type	Membrane \| Lip gaskets
Material of the front ring	Aluminium
Colour of the handle	Grey

Toggle	long
Material of the operators	Plastic
Colour of the front ring	Silver
Gross weight	240 g

Ambient conditions

Degree of protection	IP65

Ambient temperature	+0 ... +80 °C

Mechanical data - Connection technique

Termination	Screw terminals M20 x 1.5

Mechanical data

switching angle	30 °
Tightening torque of the screw	0.6 Nm

Mounting	mounting flange

RWSE10K.1 Step Switch, 22.3 mm Diameter, IP65, 10 Positions, 7,500 W Capacity
