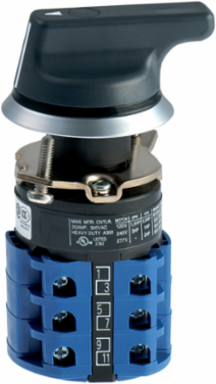

Schmersal 101192474 NWSE4K.1 Step Switch, 50 x 50 mm, 4 Positions, AC-3 5,500 W, IP67/IP69K
- MPN: 101192474
- PPN: SCM-101192474
CAD
$262.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
NWSE4K.1 Step Switch, 50 x 50 mm, 4 Positions, AC-3 5,500 W, IP67/IP69K
Documentation & Downloads
Specifications
Key Specifications
- Height
- 26 mm
Electrical data
- Thermal test current
- 20 A
- Switching capacity, AC-23
- 7,500 W
Switching capacity, AC-35,500 W
Note
- Note (General)
- A protection against corrosion for the electrical elements behind the front plate cannot be guaranteed. | If a zero position is required, we recommend to use stage 1 (contact 1) to that effect and not to assign it.
Mechanical data - Dimensions
- Height
- 26 mm
- Diameter of the front ring
- 44.5 mm
- Diameter of the knob
- 39 mm
- Thickness, of the front panel, minimum
- 1.5 mm
- Spacing
- 50 x 50 mm
Mounting depth60 mm
Length of the handle46 mm
Mounting diameter22.3 mm
Thickness of the front panel, maximum6 mm
Ambient conditions - Insulation values
- Rated insulation voltage U
- 690 V
General data - Features
- Latching
- Yes
- Number of switch positions
- 4
Fully insulatedYes
General data
- Standards
- EN IEC 60947-5-1
- Design
- Long toggle
- Toggle
- long
- Material of the operators
- ABS
- Colour of the operating element
- Black
- Colour of the handle
- Grey
- Gross weight
- 120 g
VersionsStep selector switch
Installation conditions (mechanical)arbitrarily
Sealing typeMembrane | Lip gaskets
Material of the front ringABS, chrome-plated
Colour of the front ringSilver
Colour of the bellowsBlack
Ambient conditions
- Degree of protection
- IP67 | IP69K
- Resistance to vibrations
- 10 - 150 Hz (0.5 mm / 5 g)
Ambient temperature+0 ... +80 °C
Restistance to shock50 g
Mechanical data - Connection technique
- Termination
- Screw terminals M20 x 1.5
Mechanical data
- switching angle
- 60 °
- Tightening torque of the screw
- 0.6 Nm
Mountingmounting flange
Approvals - Standards
- Certificates
- BG | IPA
