Schmersal 101160848 Selector Switch Lockout 2 Position Grey 85 mm x 30.5 mm Plastic

MPN: 101160848
PPN: SCM-101160848

$184.15

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

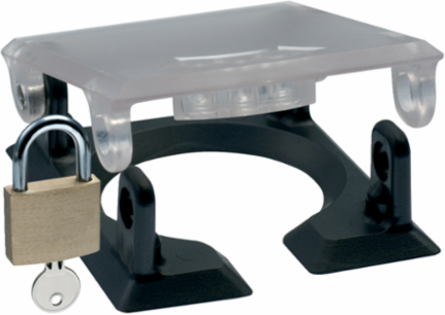

Selector Switch Lockout 2 Position Grey 85 mm x 30.5 mm Plastic

Features

for 2 position versions
Grey
Alternative to key-operated maintained selector switch

Documentation & Downloads

Specifications

Key Specifications

Length	74 mm
Height	30.5 mm

Width	85 mm

Mechanical data - Dimensions

Width	85 mm
Length x Width x Height	Grid dimensions: 74 mm x 85 mm

Height	30.5 mm

Scope of delivery

Note (scope of delivery, number and type)	Padlocks not supplied.

General data - Features

Fully insulated	Yes

Number of switch positions	2

General data

Versions	Selector switch \| Long knob
Installation conditions (mechanical)	arbitrarily
Material of the housing cover	Plastic
Colour of the bottom part of the enclosure	Grey
Note	For 2 position versions

Design	Selector switch lockout
Enclosure material	Plastic
Colour of the upper part of the enclosure	Transparent
Gross weight	40 g

Ambient conditions

Ambient temperature	-25 ... +80 °C
Restistance to shock	50 g

Resistance to vibrations	10 - 150 Hz (0.5 mm / 5 g)

Mechanical data

Mechanical life, minimum	100,000 Operations
Mounting	Screws \| Mounted from the back. For this purpose there are 4 bore holes of 3.5 mm diameter, 12 mm deep for self-cutting screws. The grid measurement in 56 x 60 mm.
