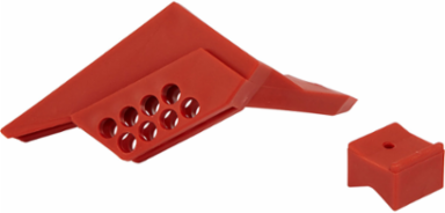

Brady 65666 Nylon Ball Valve Lockout Device Pipe Diameter Range: 1/4 to 1 in
- MPN: 65666
- UPC: 754473656669
- PPN: BRD-65666
- UNSPSC: 39121909
CAD
$35.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description

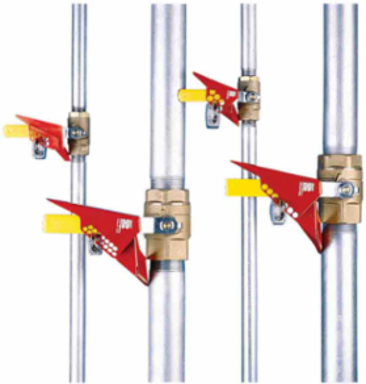

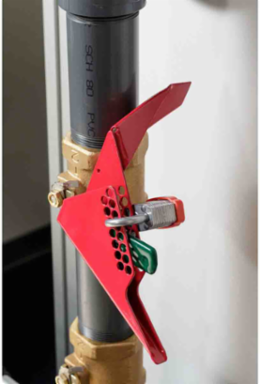

The easy-to-use, single piece design of Ball Valve Lockouts from Brady® makes them the perfect tool for securing your valve handles in the off position.
Features
- Locks out ball valve sizes from 0.25 in. to 1 in. (fits standard 9/32 in. lock shackle diameters)
- Made of super-tough nylon service temp -40° to 248° F (-40° to 120°C)
- Equipping your employees with the proper lockout tools and warning devices can save lives, reduce lost employee time, and cut insurance costs
- Brady® is a world leader in lockout/tagout products and services offering industry expertise and a broad range of durable, easy-to-use lockout devices
Documentation & Downloads
Specifications
Key Specifications
- Ball Valve Lockout Type
- Fits over Handle
- Color
- Red
- Enables Industry Compliance
- OSHA 1910.147
- Number of Holes
- 8
- Primary Noun, Basic Function
- Lockout Device
- Total Qty per Pack
- 1 Piece(s) / Pack
- Brady Material Number
- LOTO-23
- Material
- Nylon
- Depth (in/ft/yd)
- 4.8 in
- Diameter (mm/cm/m)
- 12.00 mm
- Dimensions (Metric)
- 50.80 mm W x 68.58 mm H x 12.00 mm Dia x 121.92 mm D
- Height (mm/cm/m)
- 68.58 mm
- Maximum Handle Thickness (in/ft/yd)
- 0.75 in
- Maximum Handle Width (in/ft/yd)
- 0.87 in
- Maximum Outside Pipe Diameter (mm/cm/m)
- 6.35 - 25.40
- Maximum Pipe Diameter (mm/cm/m)
- 25.4 mm
- Maximum Service Temperature °F
- 250 °F
- Maximum Shackle Diameter (mm/cm/m)
- 7.16 mm
- Minimum Pipe Diameter (in/ft/yd)
- 0.25 in
- Minimum Service Temperature °C
- -30 °C
- Minimum Shackle Clearance (in/ft/yd)
- 0.75 in
- Minimum Valve Size (in/ft/yd)
- 0.25 in
- Pipe Diameter Range (mm/cm/m)
- 6.35 mm to 25.4 mm
- Service Temperature Range °F
- -20 °F to 250 °F
- Size - W x H x D (mm)
- 50.80 x 68.58 x 121.92
- Size of Valve Lever (mm)
- 6 - 25
- Width (in/ft/yd)
- 2 in
Brand NameBrady®
ConductivityConductive
Maximum Number of Padlocks1
Open or Closed ValveClosed
Risk TypeMechanical Risk
Adhesive (Y/N)No
Lockout MaterialNylon
SAP B-NumberLOTO-23
Depth (mm/cm/m)121.92 mm
Dimensions2.7 in H x 2 in W x 4.8 in D
Height (in/ft/yd)2.7 in
Hole Inside Diameter (mm/cm/m)7.50 mm
Maximum Handle Thickness (mm/cm/m)19.05 mm
Maximum Handle Width (mm/cm/m)38.1 mm
Maximum Pipe Diameter (in/ft/yd)1 in
Maximum Service Temperature °C120 °C
Maximum Shackle Diameter (in/ft/yd)0.282 in
Maximum Valve Size1 in
Minimum Pipe Diameter (mm/cm/m)6.35 mm
Minimum Service Temperature °F-20 °F
Minimum Shackle Clearance - (mm/cm/m)19.05 mm
Pipe Diameter Range (in/ft/yd)1/4 to 1 in
Service Temperature Range °C-30 °C to 120 °C
Sign Size-General2.7 in x 2 in
Size - Width (mm)50.80 mm
Valve Size Range0.25 to 1 in
Width (mm/cm/m)50.8 mm
Regulatory Information
- Contains CA PROP 65 Substance
- No - Does not contain
- Contains Heavy Metal(s)
- No - Does not contain
- EU RoHS Compliance
- Pass 2011/65/EU(Pass 2015/863)
- SDS Safety Data Sheet required
- No = MSDS/SDS is not required
Contains CA PROP 65 SubstanceNo
DOT Regulated ProductNo = not regulated by DOT
EU RoHS CompliantYes
