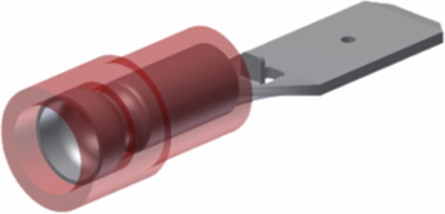

Burndy QN18M18X02B Nylon Male Quick Disconnect 22-18 AWG, 0.19 x 0.02 Inch, Tin Plated

MPN: QN18M18X02B
UPC: 781810327593
PPN: BUR-10005102
UNSPSC: 39121447

$0.40

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Nylon Male Quick Disconnect For 22 - 18 AWG (.19 x .02).

Features

Sleeved barrel
Funnel entry barrel opening assures quick and easy wire insertion
Mates with dimpled female socket detent ensuring firm grip

Specifications

Key Specifications

Country of Origin	Taiwan
Dimension - Strip Length inch	3/8 in
Dimension - Width mm	5 mm
Plated	Y
Product Type	TERMINAL
Trade Name	FINGRIP™
Type	Disconnect Connectors
Conductor Size	22 - 18 AWG
Connector Type	Male Quick Disconnect
Freight Class Code	16027000
Image Actual Or Representative	A
Sub Class Code	B57BL7F
Material	Brass
Base Unit of Measure	EA
Carton - Gross Weight per Pack	2.000 lb.
Carton - Pack Description	Carton
Carton - Total Units	1000
Package - GTIN - Package	30781810327594
Package Quantity	1000 EA
Pallet Height	47.375 in
Pallet Weight	1827.000 lb.
Standard Package Quantity	1000

Dimension - Length Overall inch	0.8 in
Dimension - Width inch	0.187 in
Insulation Type	Nylon
Plating Type	Tin
Standards - RoHS Compliance Status	CM
Insulation	Y
Conductor Range	#22 AWG to #16 AWG
Conductor Type	CU C Solid-Size;CU C Str-Size
Class Code	B57
Harmonization Code	8536904000
Lead Time	11 wk
UL Listed	No
Voltage - Maximum	300 V
BOX SIZE	4.625x4.313x4.313 (in)
Carton - Number of Sub Packs	1000
Carton - SCC-14 Next Lower Level Sub Pack	00781810327593
Case - SCC-14 Next Lower Level Sub Pack	30781810327594
Package - Total Units	1000 EA
Pallet - GTIN - Package	70781810327592
Pallet Length	48.000 in
Pallet Width	40.000 in
NAICS Code	3359319106
