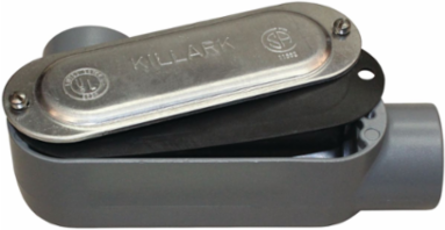

Killark OLL-2CG Aluminum Conduit Body with Cover & Gasket, 3/4 Inch Hub, 7 cu in Volume
- MPN: OLL-2CG
- UPC: 783936049298
- PPN: HBL-OLL-2CG
- UNSPSC: 39131708
CAD
$23.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
O Series/Duraloy 5 Series Aluminum Conduit Body with Cover And Gasket- LL Type - Hub Size ¾" - Volume 7.0 cu in
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 7 cu. in.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 0.1 in
- Length
- 5 in
- Type
- Conduit Body With Cover & Gasket
- Weight
- 0.48 lb.
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Gross Weight with Packaging
- 0.48
- Material
- Aluminum, Copper Free (less than 4/10 of 1%)
- BOX SIZE
- 8.750x15.250x6.250 (in)
- Carton - Number of Sub Packs
- 25
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936049298
- Master Pack Description
- Each
Dimensions5 in x 10 in x 0.1 in
ColorGray
Hub Size3/4"
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 7 cu. in.
Width10 in
ARRA CompliantContact Manufacturer
Description - InvoiceBODY,CVR,GASK 3/4" LL AL
Harmonization Code7609000000
Lead Time42 wk
Order Multiple1 EA
Sub Class CodeD30D230
Hub PatternLL
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units25 EA
NAICS Code3359323110
Certifications
- EU RoHS Indicator
- Contact Manufacturer
