Killark OLB-3CG-S Aluminum Conduit Body LB Type 1 Inch Hub, 12 Cubic Inches Volume
Killark OLB-3CG-S Aluminum Conduit Body LB Type 1 Inch Hub, 12 Cubic Inches Volume
- MPN: OLB-3CG-S
- UPC: 783936530291
- PPN: HBL-OLB-3CG-S
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$113.68/ EA
Description

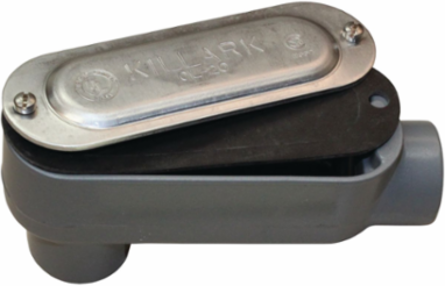

O Series/Duraloy 5 Series - Aluminum Conduit Body With Cover And Silicone Gasket - LB Type - Hub Size 1 Inch - Volume 12.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 12 cu. in.
Specifications
Specifications
- Country of Origin
- Mexico
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 0.1 in
- Length
- 5 in
- Type
- Conduit Body With Cover & Gasket
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- OLB-3CG W/SILICONE GASKET
- Harmonization Code
- 7609000000
- Lead Time
- 42 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LB
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 10.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 15
Dimensions5 in x 10 in x 0.1 in
ColorGray
Hub Size1"
Special FeaturesTapered threaded hubs (NPT). Raintight. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 12 cu. in.
Width10 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
Gross Weight with Packaging0.69
MaterialAluminum, Copper Free (less than 4/10 of 1%)
BOX SIZE8.750x15.500x6.125 (in)
Carton - Number of Sub Packs15
Carton - SCC-14 Next Lower Level Sub Pack00783936530291
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
