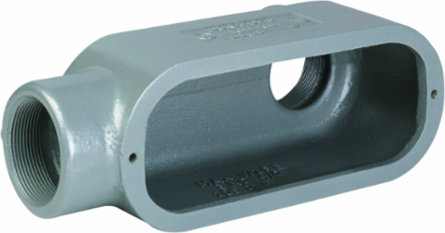

Killark LB18 Iron Conduit Body LB Type 1/2 Inch Hub Size, 5.0 Cubic Inches Volume
- MPN: LB18
- UPC: 783936481050
- PPN: HBL-LB18
- UNSPSC: 39131708
CAD
$73.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Duraloy 8 Series - Iron Conduit Body - LB Type - Hub Size 1/2 Inch - Volume 5.0 Cubic Inches
Features
- Completely interchangeable with competative bodies, gaskets, and covers.
- Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing.
- Raintight when used with gasketed covers.
- Stainless steel screws on stamped and cast covers.
- Smooth integral wire bushings.
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Hazardous Rating(s)
- Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
- Finish
- Powder Epoxy Paint
- Hub Size
- 1/2"
- Special Features
- Completely interchangeable with competitive bodies, gaskets, and covers. Flat back design provides greater cubic capacity for easier wire pulling and more room for splicing. Raintight when used with gasketed covers. Smooth integral wire bushings. Volume i
- Width
- 2 in
- Finish Type
- Powder Epoxy Paint
- Class Code
- D30
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- CSA File Number
- LR11852
- Hub Pattern
- LB
- UL Listed
- No
- Series
- Duraloy 8 Series
- BOX SIZE
- 4.125x7.500x6.000 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936481050
- Master Pack Description
- Each
- NAICS Code
- 3359323110
Dimensions6 in x 2 in x 3 in
ColorGray
Height3 in
Length6 in
TypeConduit Body
Engineering Drawing 1 Display TextLB18 Engineering Drawing
ARRA CompliantContact Manufacturer
Description - InvoiceCOND BODY,LB,GRAY IRON 1/2"
Harmonization Code7307110030
Lead Time12 wk
Order Multiple1 EA
Sub Class CodeD30D230
Gross Weight with Packaging1.03
UL File NumberE3397
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.150 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5
Standard Package Quantity10
