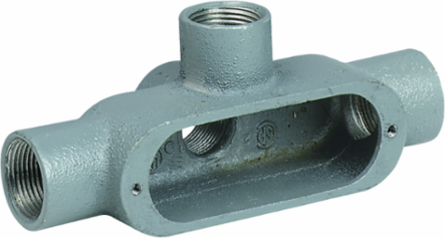

Killark OTA-2M Malleable Iron Conduit Body TA Type 3/4 Inch Hub Volume 7 Cubic Inches
Killark OTA-2M Malleable Iron Conduit Body TA Type 3/4 Inch Hub Volume 7 Cubic Inches
- MPN: OTA-2M
- UPC: 783936480831
- PPN: HBL-OTA-2M
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$94.17/ EA
Description
O Series/Duraloy 5 Series - Malleable Iron Conduit Body - TA Type - Hub Size 3/4 Inch - Volume 7.0 Cubic Inches
Features
- Raintight when used with gasketed covers.
- Malleable iron suitable for use in concrete.
- Interchangeable with competitive products.
- Stainless steel screws on stamped and cast covers.
- Tapered threaded hubs (NPT).
- Tapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 7 cu. in.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 3.000 in
- Application
- To provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
- Height
- 3 in
- Length
- 7 in
- Type
- Conduit Body
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- 3/4" IRON CONDUIT BODY TYPE TA
- Harmonization Code
- 7307199060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Gross Weight with Packaging
- 1.18
- UL File Number
- E3397
- Series
- O Series
- BOX SIZE
- 4.500x10.250x5.750 (in)
- Carton - Number of Sub Packs
- 2
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936480831
- Master Pack Description
- Each
Dimensions7 in x 3 in x 3 in
Hazardous Rating(s)Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
ColorGray
Hub Size3/4"
Special FeaturesTapered threaded hubs (NPT). Raintight when used with gasketed covers. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Volume is 7 cu. in.
Width3 in
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorYes
CSA File NumberLR11852
Hub PatternTA
MaterialIron
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.360 lb.
Carton - Pack DescriptionCarton
Carton - Total Units2
Certifications
- EU RoHS Indicator
- Contact Manufacturer
