Killark OLR-9MCG Malleable Iron Conduit Body LR Type, Hub Size 3-1/2 Inch, Volume 292 Cubic Inches
Killark OLR-9MCG Malleable Iron Conduit Body LR Type, Hub Size 3-1/2 Inch, Volume 292 Cubic Inches
- MPN: OLR-9MCG
- UPC: 783936050294
- PPN: HBL-OLR-9MCG
- UNSPSC: 39131708
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1532.26/ EA
Description

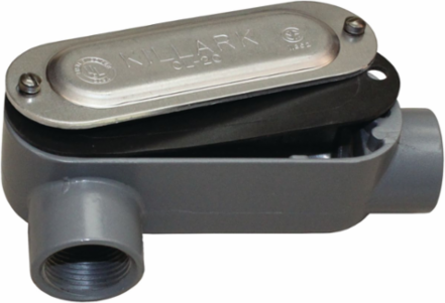

O Series/Duraloy 5 Series - Malleable Iron Conduit Body With Cover And Gasket - LR Type - Hub Size 3-1/2 Inch - Volume 292.0 Cubic Inches
Features
- Up to date with 419 and tapered hubs specifications
- Type 4 when used with neoprene gasket and cover
- Malleable iron suitable for use in concrete
- Interchangeable with competitive cover/gasket
- Staked stainless steel screws on stamped covers
- 1-1/4” – 4” LB and C hub configurations now available withrollers for relief of pulling conductors
- Killark K-Pak available which neatly packs cover and gaskettogether with displayed part number and UPC bar code store front displaying
- For conduit body packaged with cover and gasket, add CG to the catalog number
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 292 cu. in.
Specifications
Specifications
- Country of Origin
- IN
- Each - Width
- 7.125 in
- Color
- Gray
- Special Features
- Tapered threaded hubs (NPT). Raintight. Malleable iron suitable for use in concrete. Interchangeable with competitive products. Stainless steel screws on stamped and cast covers. Volume is 292 cu. in.
- ARRA Compliant
- Contact Manufacturer
- Description - Invoice
- DURALOY 5 LR 3 1/2" K-PAK
- Harmonization Code
- 7307199060
- Lead Time
- 70 wk
- Order Multiple
- 1 EA
- Sub Class Code
- D30D230
- Hub Pattern
- LR
- Series
- O Series
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936050294
Width7.125 in
ApplicationTo provide access to conductors for pulling, splicing, and maintenance. Threaded for rigid conduit and IMC.
Hub Size3-1/2"
TypeConduit Body With Cover & Gasket
Class CodeD30
Freight Class Code06316009
Image Actual Or RepresentativeR
MSDS FlagNo
Returnable IndicatorNo
Gross Weight with Packaging24.62
MaterialIron
Base Unit of MeasureEA
Master Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
