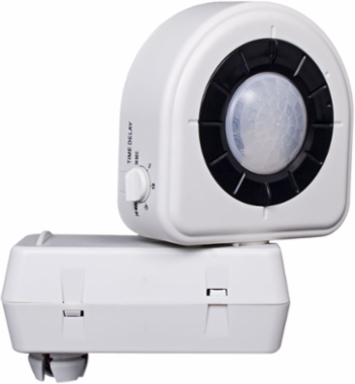

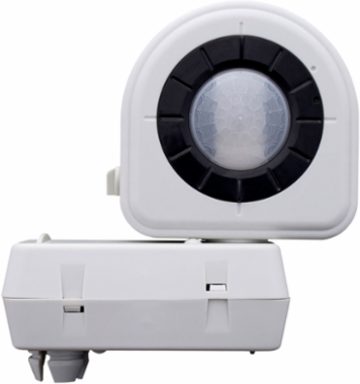

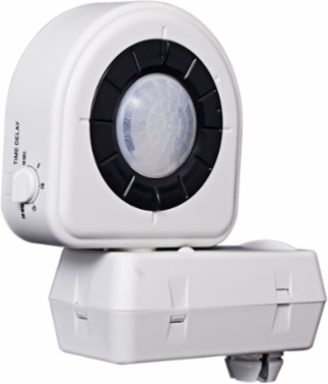

Leviton OSFLA-ITW PIR Occupancy Sensor Fixture Mount 4.32 Inch Height, 120-347 VAC, 30s-20m Delay
- MPN: OSFLA-ITW
- UPC: 078477443699
- PPN: LEV-OSFLA-ITW
CAD
$87.25
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

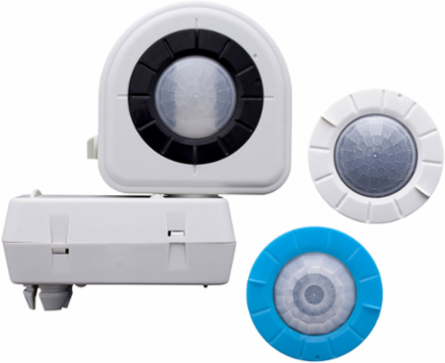

Assembly of an OSFLO Adaptor and an OSFHU-ITW, Quick Snap Connections, 120-347VAC (Wires: Black, Red, White), PIR Occupancy Sensor, High Bay (White) Lens Installed, Alternate Low Bay (Blue) Lens Supplied, 90degree Rotation FOV: (White Lens 2:1@40'H, 1.5:1@20'H; Blue Lens 2:1@8'H), Time Delay 30s-20m, Green LED, Instant Start-up, Power Outage: Return to State, Features: False Detection Logic & Auto Adjust to Ambient Temperature, 21" wire leads, RoHS Compliant (Must be ordered in quantities of 25), Title 24 Compliant, ASHRAE 90.1 Compliant
Features
- Instantly verify fixture operation and wiring connections: “instant ON” closing relay fires lamps in under 5 seconds
- High Inrush Stability (H.I.S.) Technology:
- Zero crossing circuitry optimizes relay operation for reliable, long-life operation
- Robust mechanical latching relay is durable for all load types
- Auto temperature calibration: automatically adjusts the PIR sensitivity as ambient temperature rises to increase detection of heat movement through the field-of-view
- Return to last state: for safety and energy savings, the OSFLA contains a latching relay so that in the event power is lost to the device, the device will return to the last known state of the relay
- False detection intelligence: for increased energy savings and to mitigate nuisance tripping, the super bright LED indicates advanced detection has been activated and the lights will only turn ON when true occupancy has been determined
- The Leviton Passive Infrared (PIR) Fixture Mount High Bay Sensor with two interchangeable lenses (OSFLA) is specifically designed and assembled to reduce the amount of labor required during the fixture assembly process and at the time of installation. The OSFLA includes the OSFHU PIR High-Bay Sensor, OSFLO mounting bracket with quick-snap fasteners and two interchangeable lenses for use in either a 360° high-bay or 360° low-bay general area. Do you have a question about an occupancy sensor or vacancy sensor? Contact us to learn more.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy sensing requirements
Title 24 CompliantYes
Performance Specifications
- Mounting Height (Ft.)
- 8 FT to 40 FT
Pattern360°
Mechanical Specifications
- Color
- White
- Grade
- Commercial
- Sensor Mounting Configuration
- External
ConstructionHigh-impact, injection molded plastic housing
Mounting TypeFixture Mount
SizeHeight 4.32" (109.72mm), Width 2.00" (50.8mm), Depth 2.00" (50.8mm)
Product Features
- Application
- Warehouses, Manufacturing facilities, Production facilities, Industrial Areas
- Mounting
- Fixture Mount
- Sensor Technology
- Passive Infrared (PIR)
- Time Delay
- 30s-20m
CommissioningManual
Product LineOSFLA
Sensor TypeOccupancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Environment
- Indoor
Relative Humidity20% to 95% non-condensing
Electrical Specifications
- Frequency
- 50/60Hz
- Neutral Wire Connection
- Required
- Wiring
- Line-Black, Load-Red, Neutral-White
Load Rating800VA @ 120VAC Ballast, 1200VA @ 277VAC Ballast, 1500VA @ 347VAC Ballast, 2000VA @ 480VAC Ballast, Motor: 1/4 HP Load @ 120V
Voltage120-347 VAC
Type
- Product Type
- Occupancy Sensor
