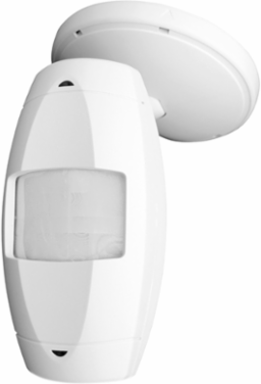

Leviton OSWWV-RIW Low Voltage PIR Wall Mount Occupancy Sensor, 2500 Sq Ft Coverage, True White
- MPN: OSWWV-RIW
- UPC: 078477553770
- PPN: LEV-OSWWV-RIW
CAD
$215.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Low Voltage Occupancy Sensor lighting control, Wall Mount, PIR, 1A 30VDC Isolated Relay, 24VAC/VDC, 2500 sq ft, Wide View, USMCA, Title 24 Compliant, True White
Features
- Combines PIR Technology with a microprocessor based digital architecture. By eliminating false triggering, the sensor provides a trouble-free "install and forget" solution for lighting control
- Self-adjusting settings continuously analyze and adjust infrared sensitivity, timer operation, and long term performance
- Adjustable swivel neck rotates 80 degrees vertically and 60 degrees horizontally. Can be used for ceiling or wall mounting
- Ambient light override prevents lights from turning on when there is ample natural light
- Self-Adjusting delayed-off time interval settings for 30 seconds to 30 minutes. Compensates for real-time occupancy patterns- preventing unnecessary on/off switching
- Non-volitile memory preserves all automatic and manual settings during power outages.
- Fast, simple installation using 3 color-coded low-voltage wires and a single mounting post
- Excellent 5-Year Limited warranty
- Typical Applications: Work Areas, Storage Areas, Store Rooms, Indoor Garages, Open Office Area with pendant fixtures, Multi-Purpose Areas, Cafeterias, Gymnasiums and Stairwells
- The OSWWV-RIW is a low-voltage infrared occupancy sensor that works with the OSPxx Series power pack , or other Class 2 power supplies, to automatically control lighting . By sensing moving infrared heat sources, the sensor automatically turns the lights ON during occupancy, maintains lights-ON and, after a time delay, turns the lights OFF when the space is vacated. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy sensing requirements
Performance Specifications
- Coverage (Sq.Ft.)
- 2500
Pattern110°
Mechanical Specifications
- Mounting Type
- Wall Mount
- Size
- Height 6.43" (163.32mm), Depth 4.67" (118.62mm), Sensor Width 2.80" (71.12mm), Base Width 4.23" (107.44mm)
Relay TypeIsolated Relay
Product Features
- Application
- Cafeterias, Parking garages, Hallways, Large open areas, Warehouses, Conference rooms
- Feature
- Wide View
- Mounting
- Wall Mount
- Product Line
- OSWWV
- Sensor Type
- Occupancy
- True White
- Yes
ColorTrue White
GradeCommercial
Mounting Height (Ft.)8-10 FT
Sensor TechnologyPassive Infrared (PIR)
Time Delay30s-30m
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Isolated Relay
- 1A @ 30VAC/VDC
- Output Voltage
- 24 VDC active high logic control signal with short circuit protection
- Voltage
- 24 VDC
Line VoltageNo
Power Consumption15mA DC, 30mA AC
Voltage TypeLow Voltage
Type
- Product Type
- Occupancy Sensor
