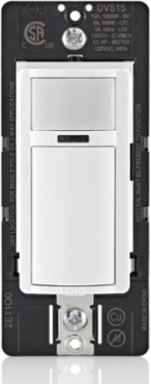

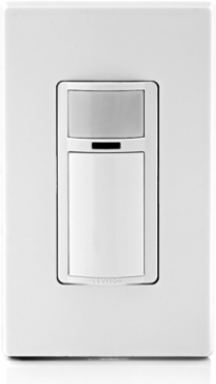

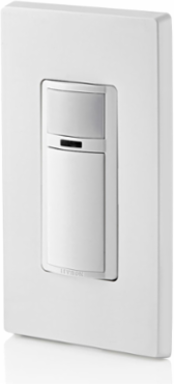

Leviton DVS15-1LZ Decora Vacancy Motion Sensor Light Switch, 15A, 900 Sq. Ft Coverage, Manual-On
- MPN: DVS15-1LZ
- UPC: 078477471289
- PPN: LEV-DVS15-1LZ
CAD
$75.95
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Decora Vacancy Motion Sensor Light Switch. 180° PIR manual-on, automatic-off, single pole, 3-way or multi-location (multi-way) when used with DD0SR switch companions or multi-sensor with two DVS15 sensors, 600W LED/CFL, 1800W Inc/Halogen 1200VA ELV/MLV/FL, 1/2HP Motor, 15A Resistive, wallplate sold separately. Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements – White with ivory and light almond faceplates included
Features
- Manual ON/Automatic OFF operation
- Controls LED, CFL, Incandescent, Halogen, Magnetic Low Voltage, Electronic Low Voltage, Florescent or Motor loads
- Provides 180° Field-of-View, 900 sq. ft. of coverage
- Shallow design easily fits in the wallbox and can replace single pole switch

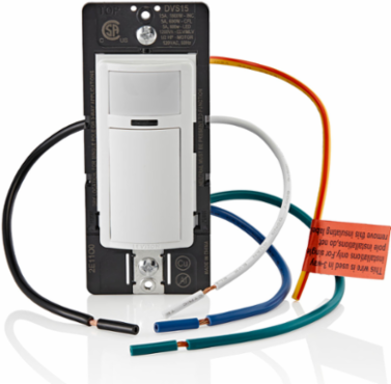

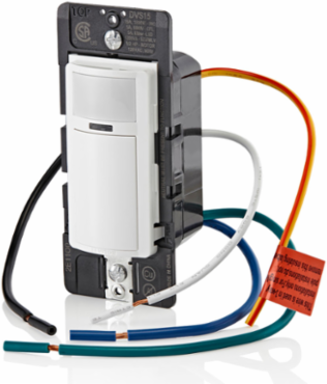

- Leaded terminals for easier installation
- Requires a neutral wire for installation
- Single pole, 3-way or multi-location (multi-way) when used with up to four (4) DD0SR-DLZ and/or up to nine (9) DD0SR-01Z switch companions
- Multi-sensor with two DVS15 sensors
- Program settings without removing the wallplate or faceplate
- Low profile design blends in with walls for a discreet appearance
- Adjustable delayed OFF time which can be set for 1 minute, 5 minutes, 10 minutes or 20 minutes
- Adjustable Range (sensitivity) to fit various coverage areas
- Convenient push-button provides Manual OFF light switching at any time
- Can be used to comply with 2019 California Title 24, Part 6 Vacancy Control Device Requirements

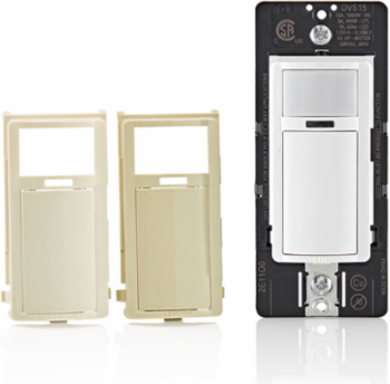

- Color change kits are available
- Five-Year Limited warranty
- CONVENIENT – turns lights off automatically when room is vacant
- EASY TO INSTALL – slim profile fits in most wallboxes
- FLEXIBLE – multi-sensor application where two sensors are needed for the coverage area, such as an “L-shaped” room
- VERSATILE – for higher wattage fixtures and exhaust fans
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| RoHS Compliant | False |
|---|
Product Features
| Auto-ON/Auto-OFF | No |
|---|---|
| Color | White, Ivory, Light Almond |
| Device Type | Sensor |
| LED Color | Green and Red |
| Mounting Type | Wall Switch |
| Ordering Notes | Includes White, Light Almond and Ivory Color Change Kit |
| Sensor Technology | Passive Infrared |
| Standards and Certifications | CSA, FCC, Title 24 |
| Switch | Relay |
| Voltage | 120 VAC |
| Warranty | 5-Year Limited |
| California Title 24 | Yes |
|---|---|
| Coverage (Sq.Ft.) | 180°, 900 Sq. Ft |
| Grade | Residential |
| Load Rating | 600W LED/CFL, 1800W Incandescent/Halogen, ½ HP, 1200VA ELV, MLV, FL, 15A Resistive |
| Neutral | Yes |
| Pole | 3 |
| Sensor Type | Vacancy |
| Style Name | Decora |
| Time Delay | 1M, 5M, 10M, 20M |
| Wallplate | Not Included |
| Wiring | Neutral Required |
