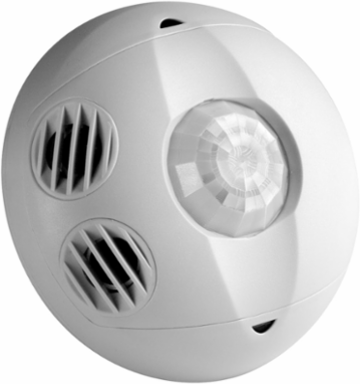

Leviton OSC05-M0W Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, 500SF, White
Leviton OSC05-M0W Occupancy Sensor, Multi-Technology (PIR/US), Ceiling Mount, 500SF, White
- MPN: OSC05-M0W
- UPC: 078477180556
- PPN: LEV-OSC05-M0W
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$236.75/ EA
Description
Occupancy Sensor lighting control, Ceiling Mounted, Multi-technology, 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion: PIR:20' radius; U/S: 23'Lx23'W, minor motion: U/S: 17'Lx17'W), red LED=PIR, green LED=U/S, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off-white
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Breakroom, Computer Room, Conference Rooms, Office Private, Office Executive, Zoned Office Area w/Cubicles, Zoned Office Open, File Room, Classroom, Lounge, All Restroom types, or Executive Workout Facility
- The most advanced occupancy sensor available. Combines multi-technology with all-digital architecture. Eliminates false triggering. The result is a trouble-free, “install and forget” solution for lighting control . Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with Title 24, Part 6 occupancy sensing requirements
Performance Specifications
- Coverage (Sq.Ft.)
- 500
Pattern360°
Mechanical Specifications
- Mounting Type
- Ceiling Mount
SizeWidth 4.20" (106.68mm), Depth 1.57" (39.90mm)
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Application
- Cafeterias|Classrooms|Computer rooms|Conference rooms|Day care centers|Filing rooms|Workspaces|Open warehouses|Offices with cubicles|Open areas|Restrooms|Stairwells|Storage rooms|Executive|open and private offices
- Grade
- Commercial
- Mounting Height (Ft.)
- 8-12 FT
- Sensor Technology
- Multi-Technology: Passive Infrared (PIR)/Ultrasonic (US)
- Time Delay
- 30s-30m
ColorWhite
MountingCeiling Mount
Product LineOSC05
Sensor TypeOccupancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Frequency
- 40kHz
- Title 24 Compliant
- Yes
Power Consumption25mA
Voltage24 VDC
Type
- Product Type
- Occupancy Sensor
