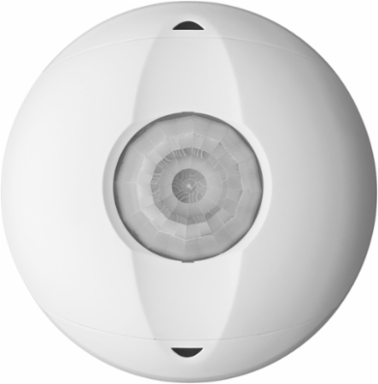

Leviton OSC15-RIW Occupancy Sensor, PIR, Ceiling Mount, 1500SF, Isolated Relay, White
- MPN: OSC15-RIW
- UPC: 078477543528
- PPN: LEV-OSC15-RIW
CAD
$215.02
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Occupancy Sensor low voltage lighting control, Ceiling Mounted, 1500 sq ft, 24VAC/VDC, PIR, 1A 30VAC/DC Isolated Relay, Extra Mid-Range Lens Assembly (for mounting between 8'-20'), Title 24 Compliant, USMCA Compliant, Color: Global White
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Copy Room, Open Office, Storage Room, Lounge, Non-Partitioned Restroom, Vending Room, General Work Space, or Hallway
- The OSCxx-RIW Infrared Ceiling Occupancy Sensor is a low voltage lighting control that works in conjunction with the Leviton OSPxx Power Pack to control lighting. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China
RoHS CompliantFalse
Standards and Certifications
- Listings
- cUL/US Certified, can be used to comply with ASHRAE 90.1 and Title 24, Part 6 occupancy sensing requirements
Title 24 CompliantYes
Performance Specifications
- Coverage (Sq.Ft.)
- 1500
Pattern360°
Mechanical Specifications
- Mounting Type
- Ceiling Mount
- Size
- Width 4.20" (106.68mm), Depth 1.57" (39.90mm)
Relay TypeIsolated Relay
Product Features
- Application
- Classrooms|Workspaces|Copy rooms|Hallways|Open areas|Private restrooms|Small offices|Conference rooms
- Grade
- Commercial
- Mounting Height (Ft.)
- Low-range lens (default) 8-12 feet Mid-range lens 12-20 feet
- Sensor Technology
- Passive Infrared (PIR)
- Time Delay
- 30s-30m
ColorWhite
MountingCeiling Mount
Product LineOSC15
Sensor TypeOccupancy
Warranty
- Warranty
- 5-Year Limited
Environmental Specifications
- Operating Temperature
- 32° to 104°F (0° to 40°C)
Relative Humidity0% to 95% non-condensing
Electrical Specifications
- Isolated Relay
- 1A @ 30VAC/VDC
- Power Consumption
- 15mA DC - 30mA AC
Output Power24 VDC active high logic control signal with short circuit protection
Voltage24 VDC
Type
- Product Type
- Occupancy Sensor
