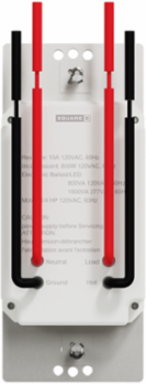

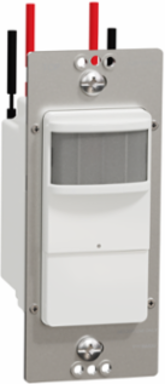

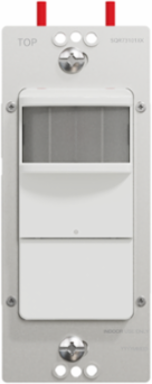

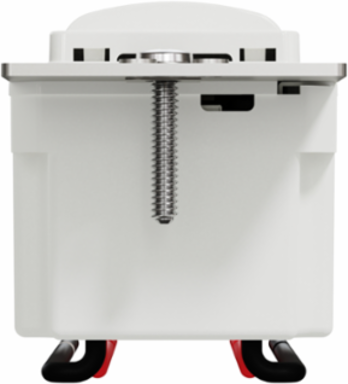

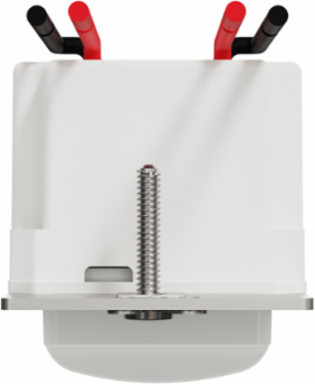

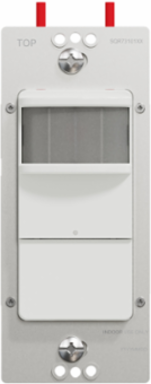

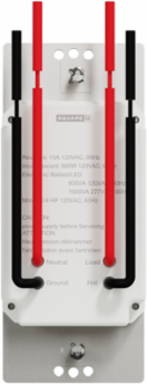

Schneider Electric SQR73101WH X Series 15A PIR Occupancy Sensor Switch, 180 Field-of-View, Flush Mount
- MPN: SQR73101WH
- UPC: 785901549239
- PPN: SCH-SQR73101WH
CAD
$38.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
X Series 15A PIR Occupancy Sensor Switch, 180 Field-of-View, Flush Mount
Features
- Equipped with an expansive 180 degree passive infrared (PIR) Fresnel lens, this switch provides wall-to-wall motion detection up to 30 feet away. It eliminates blind spots in high-traffic spaces, making it perfect for residential entryways, commercial offices, laundry rooms, and large hallways where continuous coverage is critical.
- Operating as a dedicated vacancy sensor (Manual-On, Auto-Off), this device ensures that lights are only activated when intentionally needed, maximizing your monthly energy savings. By automatically shutting off connected loads once the room is empty, it seamlessly satisfies strict Title 24, IECC, and ASHRAE energy codes for both residential and commercial buildings.

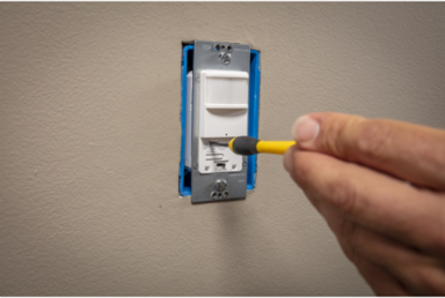

- Featuring an adjustable time-delay dial located right under the wallplate, this sensor can be set to turn lights off after 30 seconds, 5 minutes, 15 minutes, or 30 minutes of zero activity. Combined with variable sensitivity controls, it allows facility managers to optimize the sensor's behavior for high-traffic entryways or quiet, low-movement office desks.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|
| Depth | 53 mm |
|---|
Physical Attributes
| Color | White |
|---|
Important Information Attributes
| Persona Type Ids | EU, EUA, LC, SC |
|---|---|
| Sensor Type | PIR, light level sensor |
| [Ue] Rated Operational Voltage | 120 V, 277 V |
| Local Publishable Date | 2026-06-23 |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | NOT_CONTAINING_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Aesthetic Name | X Series |
| Energy Efficiency Optimized | False |
| Material | plastic: strapmetal: fixing frame |
| Network Frequency | 60 Hz |
| Number Of Gangs | 1 gang |
| Product Availability | Stock - Normally stocked in distribution facility |
| Quantity Per Set | 1 piece |
| Returnability | Yes |
| Sustainable Packaging | No |
| Targeted Channel | distributor |
| Width Nominal | 43 mm |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Customs Code | 8536507000 |
| Persona Type Names | End User, Consumer, Contractor, Electrician |
|---|---|
| Certificate Agency | cULus, ICES-003 |
| Local Data Status | Publishable |
| Pre Comm Date | 2020-03-11 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Free of Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Free of Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Device Application | control |
| Market Segment | residential |
| Mounting Mode | by screws |
| Network Type | AC |
| Number Of Poles | 1 |
| Product Or Component Type | sensor |
| Range | Square D X Series |
| Surface Finish | Matte |
| Switch Function | 1-way |
| Height Nominal | 103 mm |
| [Ie] Rated Operational Current Ac | 10 A |
| Package Weight(Lbs) | 154.221 g |
| Warranty (In Months) | 24 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope) |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Free Of Svhc | Yes |
| Reach Free Shvc | Yes |
|---|---|
| Toxic Heavy Metal Free | Yes |
| Eu Rohs Directive | Compliant |
| Packaging Without Single Use Plastic | No |
| Reach Regulation | Free of Substances of Very High Concern above the threshold |
General Attributes
| Product Or Component Type | sensor |
|---|
ETIM
| ETIM 8 | EC000133 |
|---|
| ETIM 9 | EC000133 |
|---|
Contractual Warranty Attributes
| Warranty Period | 2 year |
|---|
| Warranty | 2 year |
|---|
Overview Attributes
| Device Presentation | mechanism with fixing frame |
|---|
