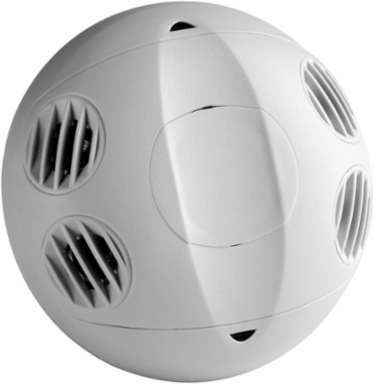

Leviton OSC20-U0W Ultrasonic Occupancy Sensor, Ceiling Mount, 2000 Sq Ft, 24 VDC
Leviton OSC20-U0W Ultrasonic Occupancy Sensor, Ceiling Mount, 2000 Sq Ft, 24 VDC
- MPN: OSC20-U0W
- UPC: 078477180594
- PPN: LEV-OSC20-U0W
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$201.75/ EA
Description
Occupancy Sensor lighting control, Ceiling Mounted, Ultrasonic only, 24VDC, 30mA power consumption, 2000 sq ft: 64'Lx32'W, minor motion: 45'Lx23'W), green LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off-white
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, File Room, Partitioned Restroom, Warehouse Open Area, Work Space General, Workout Facility, Gymnasium, or Hallway
- Microprocessor based, the OSCXX-U occupancy sensor has a self adapting feature that compensates for air flow, giving it excellent immunity to air currents and other interference. Do you have a question about an occupancy sensor or vacancy sensor?
Specifications
Standards and Certifications
- Title 24 Compliant
- Yes
Material Specifications
- Color
- White
Mechanical Specifications
- Coverage (Sq.Ft.)
- 2000
Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Product Features
- Product Line
- OSC20
- Technology
- Ultrasonic
Sensor TypeCeiling Mount
Electrical Specifications
- Voltage
- 24 VDC
