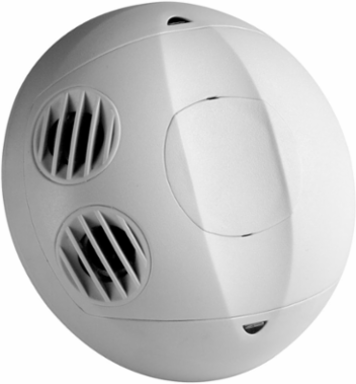

Leviton OSC05-U0W Ultrasonic Ceiling Mount Occupancy Sensor, 500 Sq Ft Coverage, 24 VDC
- MPN: OSC05-U0W
- UPC: 078477180549
- PPN: LEV-OSC05-U0W
CAD
$163.07
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Occupancy Sensor lighting control, Ceiling Mounted, Ultrasonic only, 24VDC, 25mA power consumption, 500 sq ft, 180 degree (major motion: 23'Lx23'W, minor motion 17'Lx17'W), green LED, auto adapting, walk-through, time delay 30s-30m, test mode (6s time delay for 15m with auto exit), connect gray wire for photocell ambient light hold-off, 360 degree harmonic wheel (rotatable), mounting height 8'-10', PIR, cUL/NOM/ANCE listed, CEC Title 24 compliant. Color: off-white
Features
- Small Size: Installed sensor appears almost invisible.
- Fast Simple Installation: Easy ceiling mount, three wire connection (low voltage) and twist-lock sensor attachment.
- Accurate, Consistant Switching: Occupant complaints are eliminated; lights are on when room is occupied, off when empty. annoying false-offs are minimized and lights on at night is eliminated.
- Self-Adapting: An internal microprocessor continually analyzes, evaluates and adjusts settings. Performance is kept at a maximum and user complaints are eliminated.
- Maximum Reliability, Low Cost: All digital circuitry uses a minimum of components.
- Non-Volatile Memory: Learned and adjusted settings saved in protected memory. Power outages will not cause status loss.
- Ambient Light Recognition: The photocell prevents lights from turning on when room is adequately lit by natural light.
- Excellent Warranty: 5-Year Limited warranty.
- Typical Applications: Cafeteria, Computer Room, Office w/Cubicles, File Room, Partitioned Restroom, Warehouse Open Area, Work Space General, Workout Facility, Gymnasium, or Hallway
- Microprocessor based, the OSCXX-U occupancy sensor has a self adapting feature that compensates for air flow, giving it excellent immunity to air currents and other interference. Do you have a question about an occupancy sensor or vacancy sensor?
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Please Contact Customer Service
RoHS CompliantFalse
Standards and Certifications
- Title 24 Compliant
- Yes
Material Specifications
- Color
- White
TechnologyUltrasonic
Mechanical Specifications
- Coverage (Sq.Ft.)
- 500
Product Features
- Product Line
- OSC05
Sensor TypeCeiling Mount
Electrical Specifications
- Voltage
- 24 VDC
