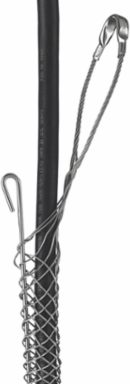

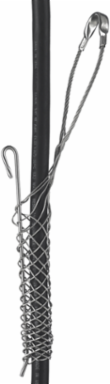

Hubbell Wiring Device-Kellems 02203044 Support Grip, Offset Eye, Split Mesh, 1.75-1.99 Inch, 2,000 lb Breaking Strength

Support Grip, Offset Eye, Split Mesh, 1.75-1.99 Inch, 2,000 lb Breaking Strength
Support Grip, Offset Eye, Split Mesh, 1.75-1.99 Inch, 2,000 lb Breaking Strength
Support Grip, Offset Eye, Split Mesh, 1.75-1.99 Inch, 2,000 lb Breaking Strength
Support Grip, Offset Eye, Split Mesh, 1.75-1.99 Inch, 2,000 lb Breaking Strength
  • MPN: 02203044
  • UPC: 783585303260
  • PPN: HBL-02203044
  • UNSPSC: 39121719

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$199.82/ EA

Description

Support Grips, Offset Eye, Single Weave, Split Mesh, Rod Closing, Tin-Coated Bronze, 1.75-1.99"

Features

  • Offset eye
  • Strand equalizers position wires for equal loading throughout grip length
  • Eye assemblies provide eye reinforcement at support hardware
  • Split Mesh- Rod Closing

Specifications

Specifications

Country of Origin
China
Cable Diameter Range
1.75 in-1.99 in
Industry Standard(s)
CSA Certified
Standards - RoHS Compliance Status
CM
Cable Size
1.75"-1.99" (4.44-5.05)
Standard
CSA Certified
General Literature Asset 1 Display Text
Pulp & Paper Solutions
General Literature Asset 3 Display Text
FOOD & BEVERAGE SOLUTIONS
Class Code
A52
Freight Class Code
06168002
Image Actual Or Representative
A
Sub Class Code
A52A480
Construction
Woven
Series
Standard Duty Series
BOX SIZE
6.650x28.252x11.500 (in)
Carton - Number of Sub Packs
10
Carton - SCC-14 Next Lower Level Sub Pack
783585303260
Case Weight
53.400 lb.
Lowest Level UOM
Each
Approx Breaking Strength2,000 lb.
Width8.000 in
PerformanceMechanical - Approximate Breaking Strength - 2,000 (8,896);Mechanical - Working Load - 200 (889.6) Lbs. (N)
ApplicationOffset Eye
Special FeaturesSplit Mesh- Rod Closing
TypeOffset Eye
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
StyleSplit Mesh, Rod Closing
Description - InvoiceOFF EYE, SUP GRIP, 1.7-2.0"; GALV, ROD
Harmonization Code7419800900
MSDS FlagNo
Material - Mounting HardwareScrew Hook or Beam Clamp
MaterialBronze, Tin Coated
Base Unit of MeasureEA
Carton - Gross Weight per Pack100.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units80 EA
Each - Pack DescriptionEach

Certifications

EU RoHS Indicator
Yes
