Wiegmann WAS150 Oil Tight Hole Seal 1-1/2 Inch Carbon Steel - Gray
Wiegmann WAS150 Oil Tight Hole Seal 1-1/2 Inch Carbon Steel - Gray
- MPN: WAS150
- UPC: 786725490707
- PPN: HBL-WAS150
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$41.00/ EA
Description

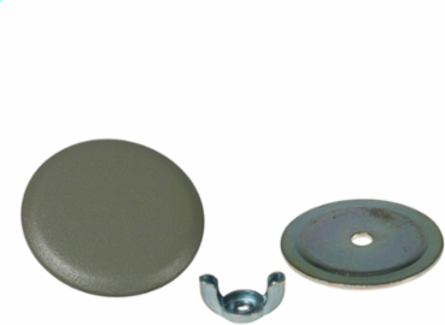

Oil Tight Hole Seal 1-1/2 Inch Carbon Steel - Gray
Features
- Quick wing nut
- Oil resistant gasket
- ANSI 61 gray polyester powder
- Maintains UL rating of the enclosure when like materials are used
- 1-1/2-inch conduit holes. Quick wing nut. Oil resistant gasket. ANSI-61 gray smooth finish.
Specifications
Specifications
- Country of Origin
- China
- Industry Standard(s)
- cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791
- Application
- Designed to seal extra push-button holes, conduit openings, and knockout openings from dirt, dust, oil and water.
- Cubic Capacity
- 2.45 cu.in
- Finish
- Smooth
- Size
- 3 in x 3.5 in x 1 in
- Standard
- cULus Recognized Component;NEMA 1;NEMA 4;NEMA 4X;NEMA 12;NEMA 13;File No. E64791
- Width
- 3.5 in
- Accessory Type
- Hole Seal
- Material type
- Carbon Steel
- Class Code
- P05
- Freight Class Code
- 06316009
- Image Actual Or Representative
- R
- MSDS Flag
- No
- Returnable Indicator
- Yes
- Sub Class Code
- P05P075
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.200 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Dimensions3 in x 3.5 in x 1 in
Length3 in
ColorAnsi-61 Gray Smooth
Depth0.7 in
Height1 in
Special Features1-1/2-inch conduit holes. Quick wing nut. Oil resistant gasket. ANSI-61 gray smooth finish.
TypeAccessory
Weight0.2 lb.
Finish TypeSmooth
ARRA CompliantContact Manufacturer
Description - InvoiceSEAL,OT,CONDUIT 1 1/2"
Harmonization Code7326908688
Lead Time14 wk
Order Multiple1 EA
Stock IndicatorS - Shelf Stock
MaterialCarbon Steel
BOX SIZE3.000x6.200x4.700 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00786725490707
Pallet Height40.500 in
Pallet Weight1409.400 lb.
Certifications
- Buy American Compliant
- Contact Manufacturer
EU RoHS IndicatorYes
